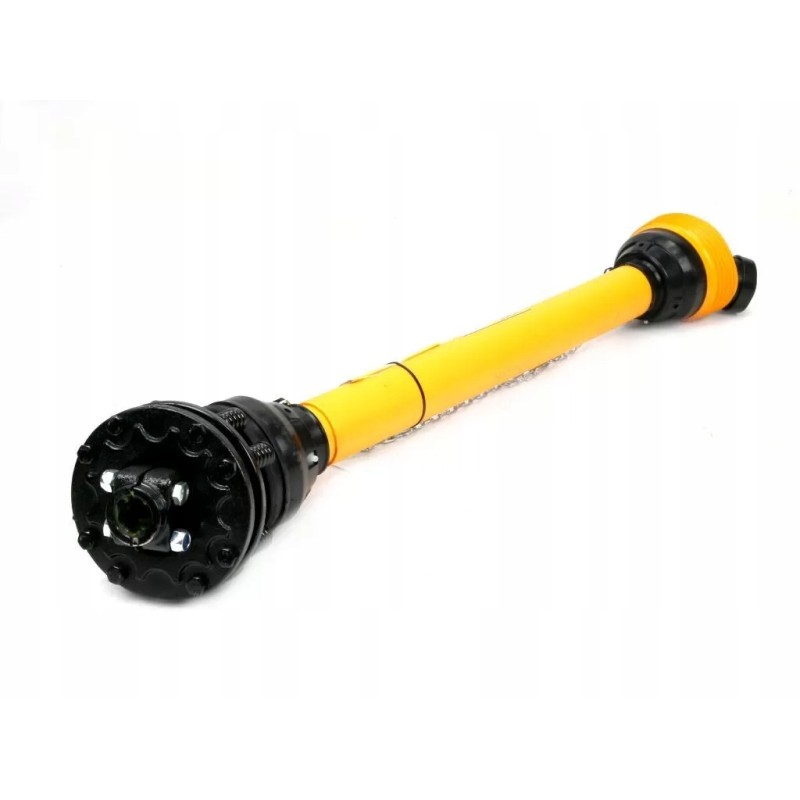

Articulated and telescopic shaft 660 1000mm 460nm coupling

PTO shaft 660-1000mm 460Nm coupling Index W352B1660Clutch: Friction

Maximum length: 1000

Minimum length: 660

Inner tube thickness: 36

Thickness of the outer tube: 43.5

Nominal power: 26 ( 35 )

Mounting to the machine: 1 3/8' Z6

Mounting for tractor: 1 3/8' Z6

Torque: 460

Operating angle: Max 17°

Bearing diameter: 27

Height of the cross: 74.6

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227301, Cross fork - WR219301, Internal pipe fork. - WR219307, Outer pipe fork - WR219306, Inner pipe - WR2323505, Outer pipe - WR2322535, Housing - WR21931129, Coupling - WR213350

Inner pipe wall thickness: 4.5

Thickness outer pipe walls: 3.4

Clutch disconnecting power: 900 Nm

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Mounting to the tractor: 1 3/8' Z6cal

Mounting to the machine: 1 3/8' Z6cal

Telescopic connector type: Triangular tube

Minimum length: 660mm

< p/>Maximum length: 1000mm

Nominal power: 26(35)KW (HP)

Clutch: Friction

Inner tube thickness: 36mm

Outer tube thickness: 43.5mm

Bearing diameter: 27mm

Cross height: 74.6mm

Works with: External fork - WR227301, Krzyżak - WR219301, Internal pipe fork. - WR219307, Outer pipe fork - WR219306, Inner pipe - WR2323505, Outer pipe - WR2322535, Housing - WR21931129, Clutch - WR213350

Clutch disengaging power: 900 Nm

Torque: 460Nm

Working angle: Max 17°

Inner pipe wall thickness: 4.5mm

Outer pipe wall thickness: 3.4mm

EAN 5902287212037

The Waryński company, using its many years of production experience in the industrial industry, has expanded its offer to include parts for agricultural machines. To meet the expectations of agricultural customers, all Waryński products are made of carefully selected materials and tested at every stage of the production process by qualified specialists. All our products are characterized by long service life and resistance when working in difficult conditions.

All products available in our store are new and unused.

Despite every effort, we cannot guarantee that the published photos, technical data and descriptions do not contain any omissions or errors.
