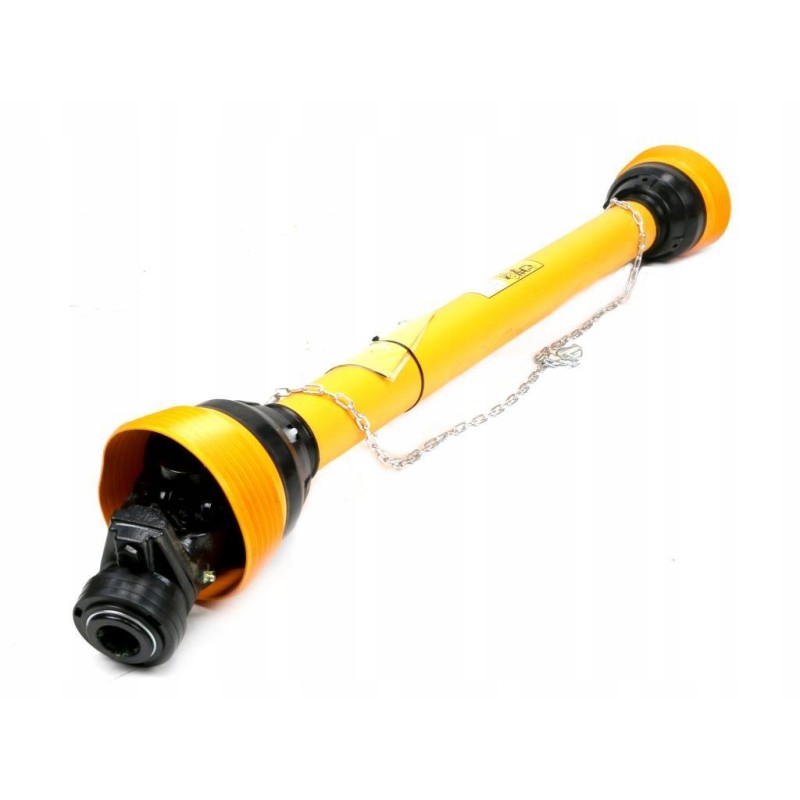

Articulated and telescopic shaft 1210 2050mm 620nm coupling

PTO shaft 1210-2050mm 620Nm coupling Index W5B1711210Clutch: Coupling with pin

Maximum length: 2050

Minimum length: 1210

Inner tube thickness: 45< p>

Outer tube thickness: 51.5

Nominal power: 35 ( 47 )

Mounting to the machine: 1 3/8' Z6'

Attachment to tractor: 1 3/8' Z6'

Torque: 620

Operating angle: Max 17°

Bearing diameter: 30.2

Height of the cross: 79.4

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227501, WR214571, Cross fork - WR219501, Internal pipe fork . - WR219507, Outer pipe fork - WR219506, Inner pipe - WR23431055, Outer pipe - WR23421090, Housing - WR21951129,

Inner pipe wall thickness: 3.8

Outer pipe wall thickness : 3

The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: Clutch with a pin

Maximum length: 2050mm

Minimum length: 1210mm

Inner tube thickness: 45mm

Outer tube thickness: 51.5mm

Nominal power: 35 ( 47 )KW (HP)

Mounting to the machine: 1 3/8' Z6'cal

Mounting to the tractor: 1 3/8 ' Z6'cal

Torque: 620Nm

Operating angle: Max 17°

Bearing diameter: 30.2mm

Height of the cross : 79.4mm

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227501, WR214571, Cross connector - WR219501, Internal pipe fork. - WR219507, Outer pipe fork - WR219506, Inner pipe - WR23431055, Outer pipe - WR23421090, Housing - WR21951129,

Inner pipe wall thickness: 3.8mm

Outer pipe wall thickness : 3mm

EAN 5902287198881

* When ordering this product, WARYŃSKI scented pendant, FREE! The Waryński company, using its many years of production experience in the industrial industry, has expanded its offer to include parts for agricultural machines. To meet the expectations of agricultural customers, all Waryński products are made of carefully selected materials and tested at every stage of the production process by qualified specialists. All our products are characterized by long service life and resistance when working in difficult conditions.

All products available in our store are new and unused.

Despite every effort, we cannot guarantee that the published photos, technical data and descriptions do not contain any omissions or errors.
