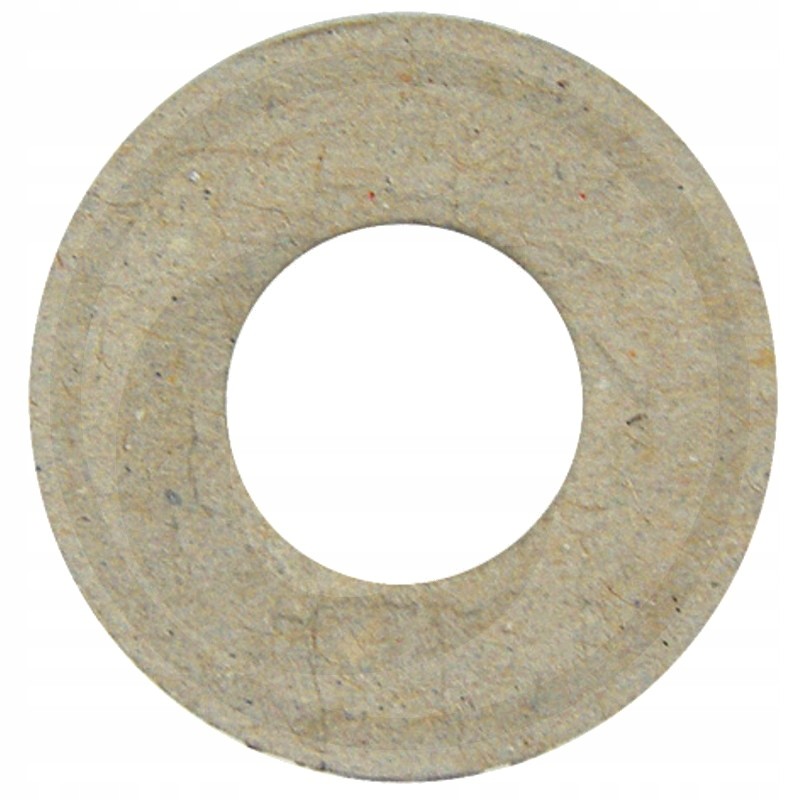

Lemken cardboard washer 16 5x35 5x5mm for mounting

Lemken Cardboard washer 16.5x35.5x5mm - for odk installation Dimensions (mm): 16.5 x 35.5 x 5.

Description: The mouldboards are mounted with cardboard pads. Due to manufacturing tolerances, each moldboard is bent slightly differently. If new siding is installed without a cardboard backing, tension will be created which will lead to breakage. During assembly, use at least one washer for each screw. If this is not enough, the distance between the moldboard and the body should be filled with further washers so that there is no gap. The screw should not be tightened too much because the washers are also intended to absorb vibrations..

Weight: 3 g

Article number: 4003057703

Reference number: 3057703

Manufacturer: Lemken
