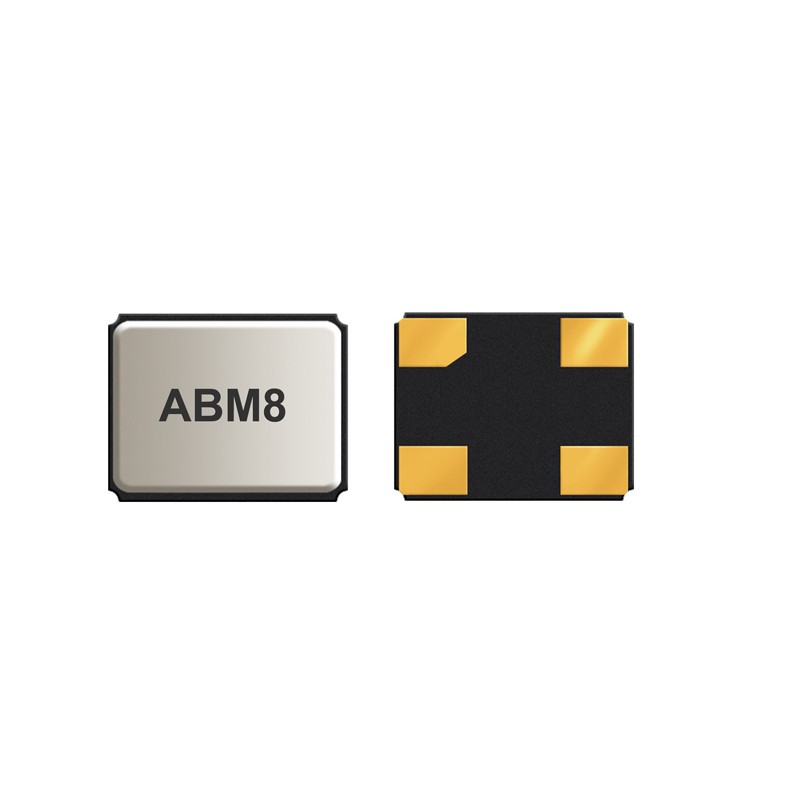

    50 pcs - ABM8-16.000MHZ-10-1-U-T Abracon 16MHz Crystal Unit ±10ppm SMD 4-Pin 3.2 x 2.5 x 0.8mm
    • 50 pcs - ABM8-16.000MHZ-10-1-U-T Abracon 16MHz Crystal Unit ±10ppm SMD 4-Pin 3.2 x 2.5 x 0.8mm

    50 pcs - ABM8-16.000MHZ-10-1-U-T Abracon 16MHz Crystal Unit ±10ppm SMD 4-Pin 3.2 x 2.5 x 0.8mm

    50(Allparts)1712765
    ABRACON
    50 pcs - ABM8-16.000MHZ-10-1-U-T Abracon 16MHz Crystal Unit ±10ppm SMD 4-Pin 3.2 x 2.5 x 0.8mm
    £60.18
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Low in height, suitable for thin equipment, 0.8mm maxSeam sealed package assures high reliabilityTight tolerance and stability availableAvailable for fundamental and 3rd over tone modeHigh density applicationsModems, communication and test equipmentPMCIA, Wireless applications
    Product Details
    ABRACON
    50(Allparts)1712765
    ABM8-16.000MHZ-10-1-U-T
    10 Items

    Data sheet

    Manufacturer
    ABRACON
    Dimensions
    3.2 x 2.5 x 0.8mm
    Height
    0.8mm
    Length
    3.2mm
    A-Supplier
    Allparts-UK/15/R-14
    Maximum Operating Temperature
    60°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -10°C
    Pin Count
    4
    Package Type
    SMD
    Frequency Stability
    ±10ppm
    Frequency Tolerance
    ±10ppm
    Load Capacitance
    18pF
    Standard Frequency
    16MHz
    Series Resistance
    70Ω
