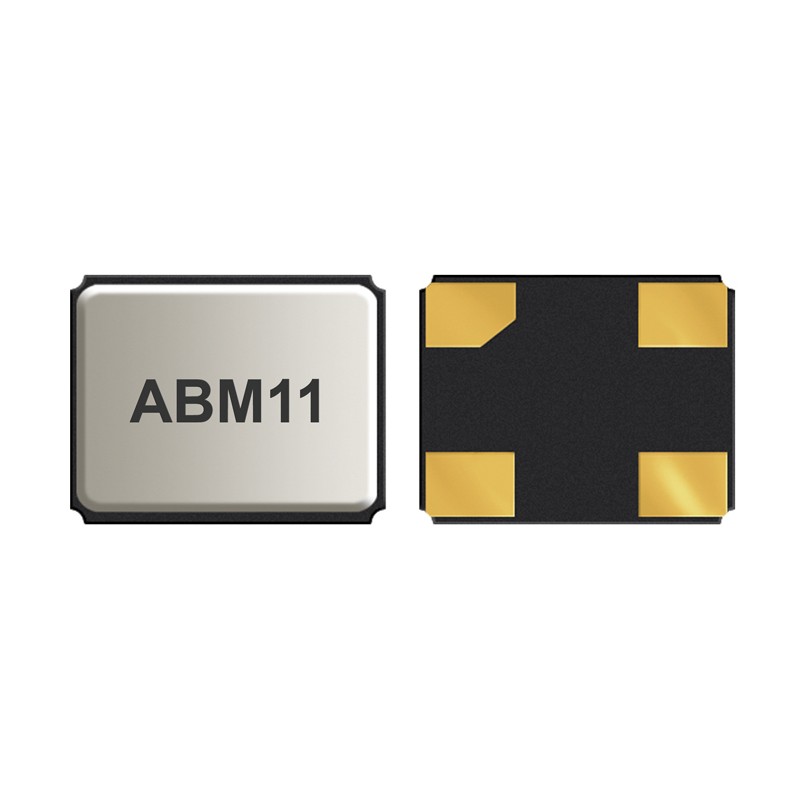

    50 pcs - ABM11-16.000MHz-12-N1G-T Abracon 16MHz Crystal Unit ±10ppm SMD 4-Pin 2 x 1.6 x 0.59mm
    • 50 pcs - ABM11-16.000MHz-12-N1G-T Abracon 16MHz Crystal Unit ±10ppm SMD 4-Pin 2 x 1.6 x 0.59mm

    50 pcs - ABM11-16.000MHz-12-N1G-T Abracon 16MHz Crystal Unit ±10ppm SMD 4-Pin 2 x 1.6 x 0.59mm

    50(Allparts)1876067
    ABRACON
    50 pcs - ABM11-16.000MHz-12-N1G-T Abracon 16MHz Crystal Unit ±10ppm SMD 4-Pin 2 x 1.6 x 0.59mm
    £58.17
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    2.0 x 1.6 x 0.59mm ultra miniature package.Seam sealed ceramic package with metal lid assures high precision and reliability.APPLICATIONS: Cellular telephone s, Pagers. Communication and T est equipment. High Density applicationsPCMCIA and wireless applications.
    Product Details
    ABRACON
    50(Allparts)1876067
    ABM11-16.000MHz-12-N1G-T
    10 Items

    Data sheet

    Manufacturer
    ABRACON
    Dimensions
    2 x 1.6 x 0.59mm
    Height
    0.59mm
    Length
    2mm
    A-Supplier
    Allparts-UK/15/R-14
    Maximum Operating Temperature
    85°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -30°C
    Pin Count
    4
    Package Type
    SMD
    Frequency Stability
    ±15ppm
    Frequency Tolerance
    ±10ppm
    Load Capacitance
    12pF
    Standard Frequency
    16MHz
    Series Resistance
    150Ω
