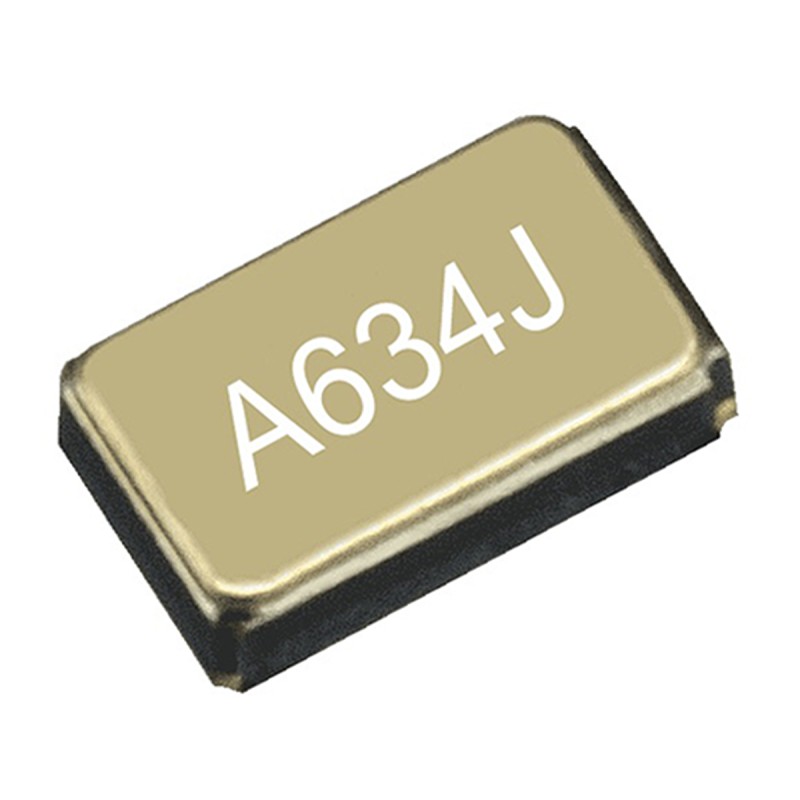

    20 pcs - X1A000061000212 EPSON 32.768kHz Crystal Unit ±30ppm FC-12M 2-Pin 2.05 x 1.2 x 0.6mm
    • 20 pcs - X1A000061000212 EPSON 32.768kHz Crystal Unit ±30ppm FC-12M 2-Pin 2.05 x 1.2 x 0.6mm

    20 pcs - X1A000061000212 EPSON 32.768kHz Crystal Unit ±30ppm FC-12M 2-Pin 2.05 x 1.2 x 0.6mm

    20(Allparts)9047499
    EPSON
    20 pcs - X1A000061000212 EPSON 32.768kHz Crystal Unit ±30ppm FC-12M 2-Pin 2.05 x 1.2 x 0.6mm
    £53.36
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    FC12-M Series kHz Range Crystal UnitFC12-M series kHz range SMD tuning fork crystals with an ultra compact 2.0 x 1.2 x 0.6mm size which is achieved through the incorporation of QMEMS and high precision mounting technology. These low profile FC12-M crystal units have a 32 kHz to 77.5 kHz frequency range and offer high integration density, improved design flexibility and advanced functionality.Crystals 2.05 x1.2mm Case
    Product Details
    EPSON
    20(Allparts)9047499
    X1A000061000212
    10 Items

    Data sheet

    Manufacturer
    EPSON
    Dimensions
    2.05 x 1.2 x 0.6mm
    Height
    0.6mm
    Length
    2.05mm
    A-Supplier
    Allparts-UK/15/R-14
    Maximum Operating Temperature
    85°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -40°C
    Pin Count
    2
    Package Type
    FC-12M
    Frequency Tolerance
    ±30ppm
    Load Capacitance
    12.5pF
    Standard Frequency
    32.768kHz
    Series Resistance
    65 - 90kΩ
