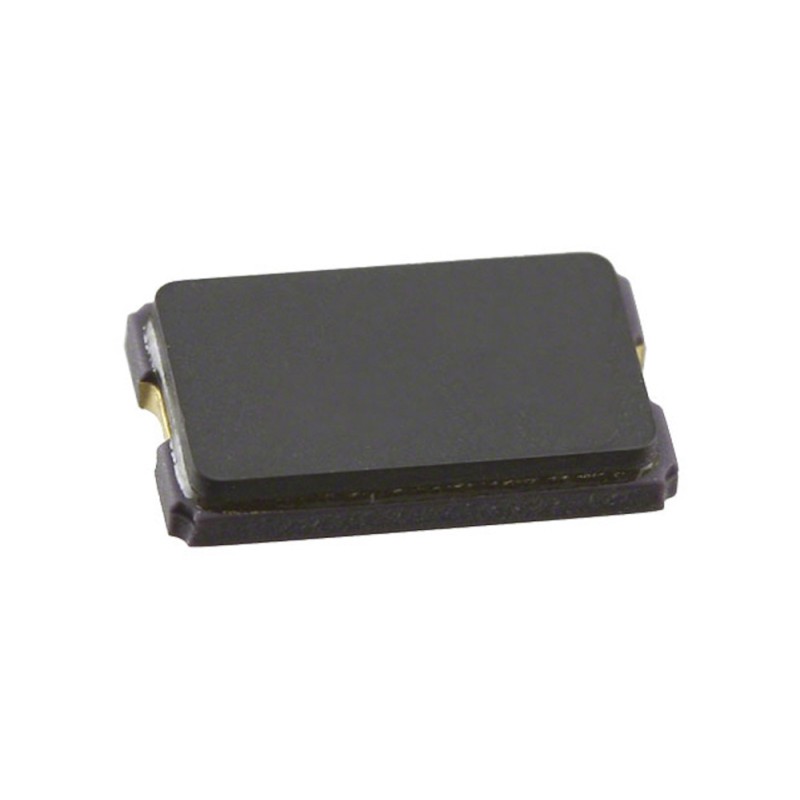

    50 pcs - ABM10W-27.1200MHZ-4-D1X-T3 Abracon 27.12MHz Crystal ±10ppm (DFN - LCC), 4-SMD, No Lead 2.5 x 2.2 x 0.6mm
    • 50 pcs - ABM10W-27.1200MHZ-4-D1X-T3 Abracon 27.12MHz Crystal ±10ppm (DFN - LCC), 4-SMD, No Lead 2.5 x 2.2 x 0.6mm

    50 pcs - ABM10W-27.1200MHZ-4-D1X-T3 Abracon 27.12MHz Crystal ±10ppm (DFN - LCC), 4-SMD, No Lead 2.5 x 2.2 x 0.6mm

    50(Allparts)1710313
    ABRACON
    50 pcs - ABM10W-27.1200MHZ-4-D1X-T3 Abracon 27.12MHz Crystal ±10ppm (DFN - LCC), 4-SMD, No Lead 2.5 x 2.2 x 0.6mm
    £49.64
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    ABM10WABRACON ABM10W series IoT optimized low profile quartz Crystals are optimized for energy saving wearables and IoT applications.0.6 mm max height so ideally suited for height constrained designsPlated at exceptionally low plating capacitance,as low as 4pF, with optimized ESR.Seam sealed for longterm reliabilityApplicationsWearablesBluetooth/Bluetooth Low EnergyInternet of Things (IoT)Wireless modulesUltra-low powerNear Field CommunicationMachine-to-machine (M2M) connectivityISM Band
    Product Details
    ABRACON
    50(Allparts)1710313
    ABM10W-27.1200MHZ-4-D1X-T3
    10 Items

    Data sheet

    Manufacturer
    ABRACON
    Dimensions
    2.5 x 2.2 x 0.6mm
    Height
    0.6mm
    Length
    2.5mm
    A-Supplier
    Allparts-UK/15/R-14
    Maximum Operating Temperature
    85°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -40°C
    Package Type
    (DFN - LCC), 4-SMD, No Lead
    Frequency Stability
    ±20ppm
    Frequency Tolerance
    ±10ppm
    Load Capacitance
    4pF
    Standard Frequency
    27.12MHz
