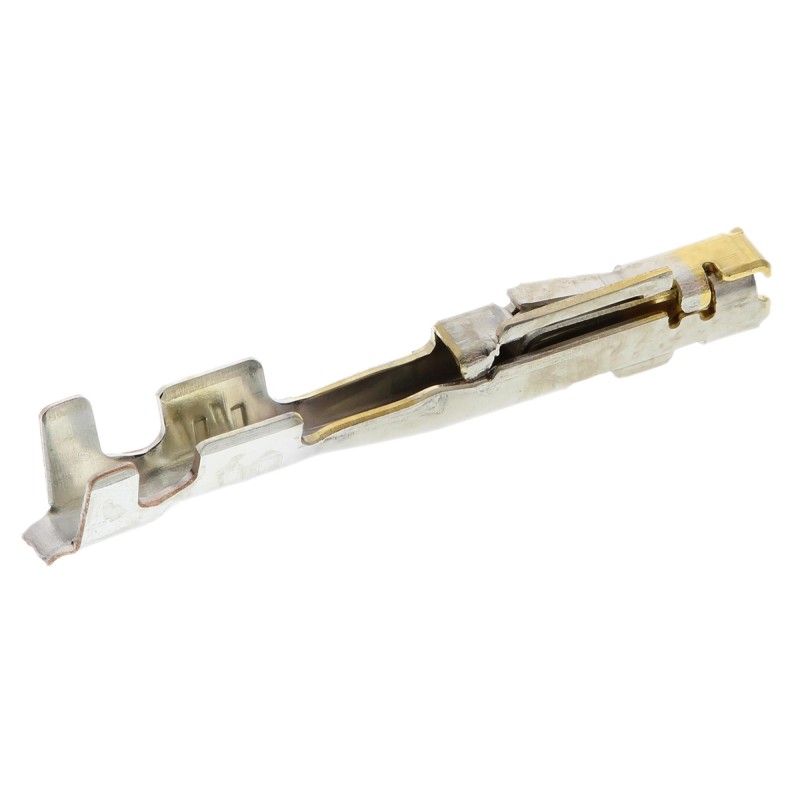

100 pcs - 1123343-2 TE Connectivity 025 Series Female Crimp Terminal, 24AWG Min, 20AWG Max

MULTILOCK 040 & 070 Contacts & ToolingThese connectors manufactured from TE Connectivity offers a solid mechanical connection which is ideal for any cable connection. They are mostly used in automation industry. Our range offers both female and male socket type connection. You can choose from tin or gold contact plating.Features of 040 Series:• Current rating – 8A• Withstand voltage: 1kVac per 1 minute• Low level resistance: 10 mΩ max (initial)• Overall resistance: 20 mΩ max (final)• Operating temperature: -30 – 105 °C• Crimp terminating contacts• Snap-in fixing connector cavitiesFeatures of 070 Series:• Current rating: 15A• Withstand voltage: 1kVac per 1 minute• Low level resistance: 1 mΩ max (initial)• Overall resistance: 10 mΩ max (final)• Operating temperature: -30 to +105 °C• Crimp terminating contacts• Snap-in fixing connector cavitiesTE Connectivity MULTILOCK Connectors and ContactsThis is a miniature high density connector system offering a wire to wire and wire to board I/O solution commonly used in the automotive industry but suitable for many varying signal transfer applications.Snap in, crimp contacts for cable receptaclesBoard mounting options are pre-loaded with male contactsFor wire to board connections utilise a cable and a board receptacleCable cap accepts female contacts, cable plug accepts male contactsCable cap mates cable plug to allow wire to wire connectionsHigh density wiring connectors with 2.5mm contact centres
