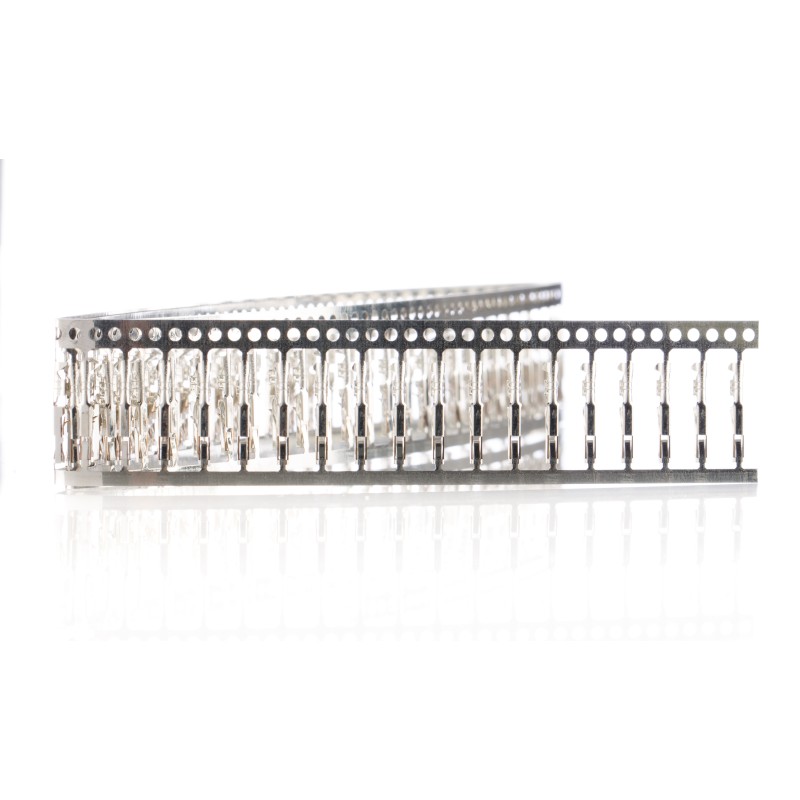

500 pcs - 90119-0109 Molex C-Grid III Series Female Crimp Terminal, 24AWG Min, 22AWG Max

Molex C-Grid III Crimp Terminals - 90119 SeriesC-Grid III 90119 series female crimp terminals for use in C-Grid III 90156, 90123, 90142, 90143 and 90160 series crimp housings. These C-Grid III crimp receptacles terminals have a box design and a uniform locking system that enables them to be used inside different housing styles. The contacts are made from phosphor bronze with a choice of gold or tin plating and suitable for use with wire size ranges of 24-22 AWG or 28-26 AWG.For suitable crimp tools see stock number 781-2728 for 24-22 AWG terminals and 781-2737 for 28-26 AWG terminals. An extraction tool (stock number 360-6897) and an insertion tool (stock number 360-6881) are also available.Features:• Current Rating: 3A max• Working Voltage: 350 Vac/dc max• Contact Plating: Selective Gold over Nickel or Tin over Nickel• Insulation Material Headers: 15% Glass-filled Polyester (PBT)• Housing: Polyphenylene Oxide• Header Pin Size: 0.64 square mm• Recommended PCB Hole Diameter: 1mmApplication:• Consumer Electronics• Commercial Vehicles2.54mm Molex C-Grid III Range
