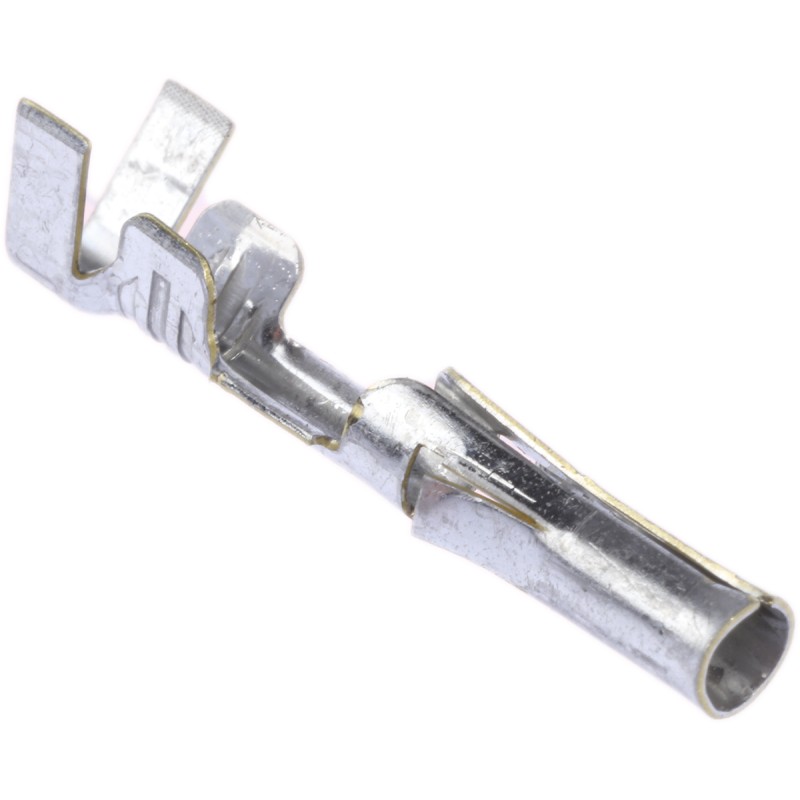

200 pcs - 02-09-1104 Molex STANDARD .093' Series Female Crimp Terminal, 20AWG Min, 14AWG Max

Molex 2.36mm Diameter Pin and Receptacle Crimp Terminals2.36mm diameter pin and receptacle crimp terminals with an industry standard size which allows them to be used in the 5.03mm pitch Standard .093' and 6.71mm pitch 3191 series connector housings. These crimp terminals can be used in either plug or receptacle housings for design flexibility and are available with a tin or gold plating and a range of wire sizes.Application:• Consumer Electronics• Communications• Networking• Portable DevicesApprovalsUL (E29179), CSA (LR 19980), EAMCLMolex Female Crimp Terminal, 14 to 20AWG, 10mΩ - 1189 Series - 02-09-1102Easily terminate your power wires with this female crimp terminal from Molex. The contact allows you to simply clamp wires in place, while the double-crimp design ensures they're held securely. With an industry-standard size of 0.093 inches, the unit works with universal plug and receptacle housings and features a positive lock to prevent accidental detachment. The corrosion-resistant brass material is tin-plated to give you a reliable connection to your electrical circuit. Use it for medium-power applications such as consumer electronics and networking devices.Features & Benefits• Wide operating temperature range of -40°C to +105°C for use in demanding environments• Contact resistance of 10mΩ (milliohms) to maximise efficiency of electrical circuits• Low-halogen material to reduce toxic fumes and increase safety• Comes in a convenient pack of 100Applications• Communications and networking• Computers and peripherals• Domestic white goods• Security systemsWhat size of wires can this female crimp terminal accommodate?This crimp terminal works with wires sized 14,16, 18 and 20AWG (American Wire Gauge) for increased flexibility. For wires measured in square millimetres, it takes sizes between 0.5 and 2mm².Molex 2.36mm Diameter Standard .093' Pin and Socket Range
