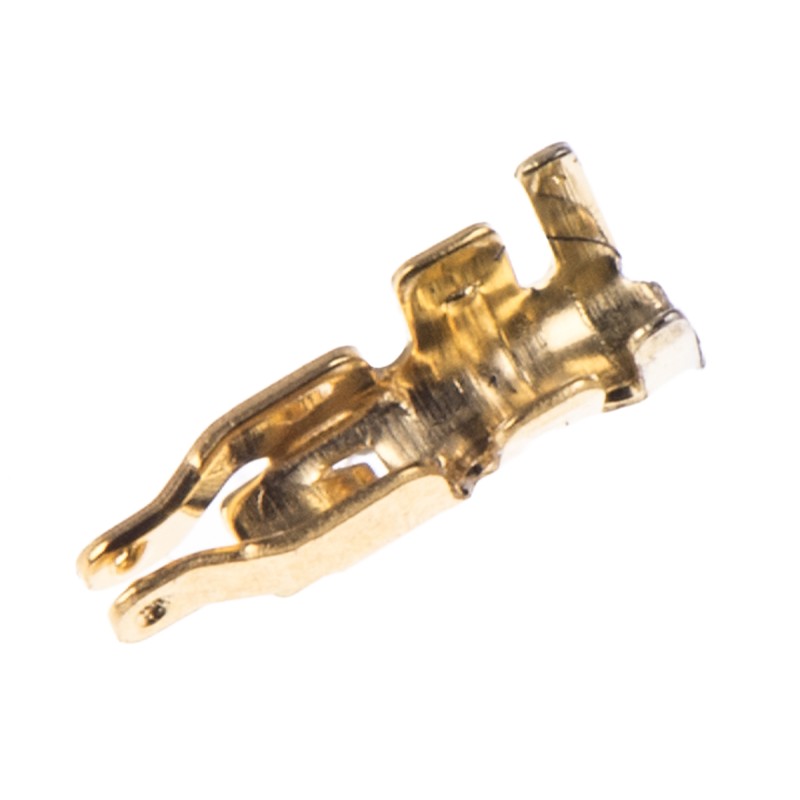

500 pcs - 78172-0410 Molex Pico-EZmate Series Female Crimp Terminal, 30AWG Min, 28AWG Max

Molex Pico-Ezmate 1.2mm Wire to Board Receptacle Crimp Terminal , 78172 SeriesFemale receptacle crimp terminal for use with Pico-Ezmate 1.2mm wire to board receptacle crimp housings. This Pico-Ezmate crimp receptacle is made from phopshor bronze with a gold plating, accepts a wire size of 28 and 30 AWG and a maximum insulation diameter of 0.60mm max.For suitable crimp tool see stock number 699-8149For extraction tool see stock number 699-8142Contacts used with 78172 Series receptacle housings typical stock number 700-1013 .1.20mm Wire to Board - Molex Pico-EZmateMolex's new 1.20mm pitch Pico-EZmate™ connectors are compact and low profile, with a mated height of 1.40mm for wire-to-board applications.The Pico-EZmate connector design includes secure locking features between the receptacle housing and the PCB header. The receptacle is mated vertically with the header, which allows excellent workability in production lines.The headers are packed in embossed tape for automatic insertion equipment.Both header and receptacle housings are made from a halogen-free resin with a 94 V-0 rated material.The series also complies to European RoHS directives.
