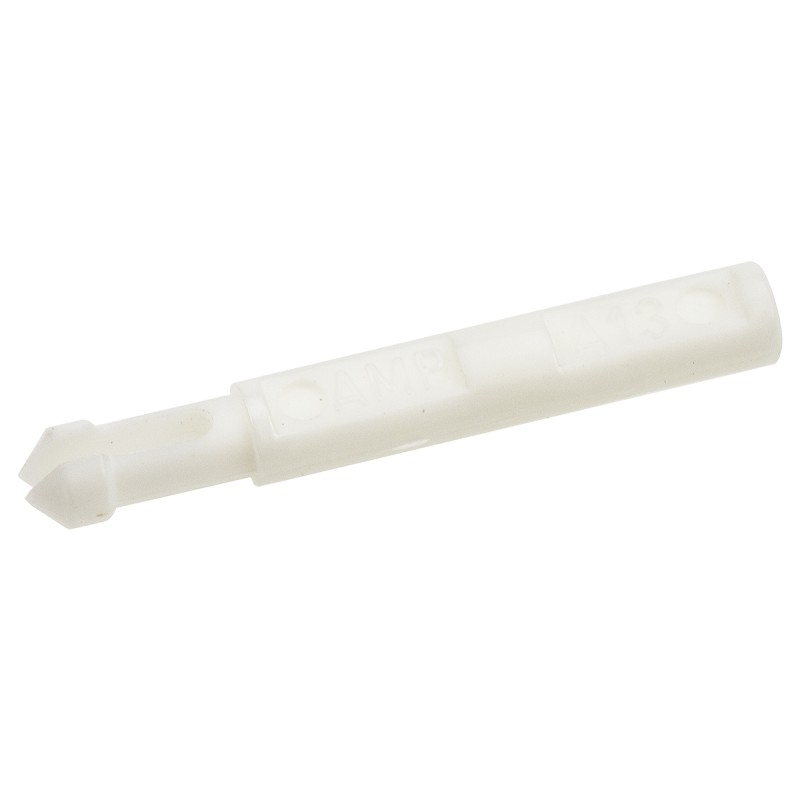

50 pcs - 770377-1 TE Connectivity Mate-N-Lok Series Keying Plug

Mate-N-Lok Contacts for Sealed ConnectorsFeatures:The male contact comes in two versions: • the rigid version is used with 2 to 4 way packages• split version is recommended for 6 to 15 way packages, to reduce the connector insertion forceBlanking pins are provided to block off holes not containing contacts• PCB Headers: 12• Voltage Rating: 600 Vac/dc• Temperature Range: -55 to +105 °C• Mating Cycles: 50• Insulation Material UL94V-2: Natural polyamide• Insulation Material UL94V-0: White opaque Nylon 6.6• Insulation Resistance: 1000 MΩ• Contact Resistance: 3.5 mΩA tool designed for the Mate-N-Lok sealed connector is available separately see stock no. 366-2055Application:• Consumer Electronics• Commercial• HVAC• Power Supplies • Portable Devices• LightingTE Connectivity Universal MATE-N-LOK™ Range
