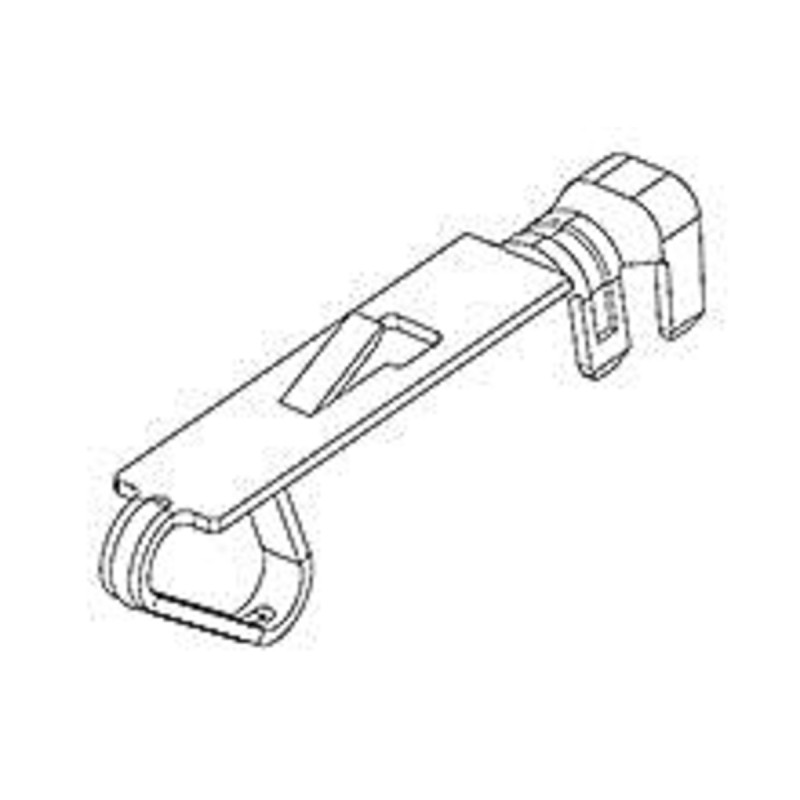

200 pcs - 200449-0001 Molex EDGELOCK Series Female Crimp Terminal, Crimp or Compression Termination, 24AWG Min, 22AWG Max
    • 200 pcs - 200449-0001 Molex EDGELOCK Series Female Crimp Terminal, Crimp or Compression Termination, 24AWG Min, 22AWG Max

    200 pcs - 200449-0001 Molex EDGELOCK Series Female Crimp Terminal, Crimp or Compression Termination, 24AWG Min, 22AWG Max

    200(Allparts)1742036
    MOLEX
    200 pcs - 200449-0001 Molex EDGELOCK Series Female Crimp Terminal, Crimp or Compression Termination, 24AWG Min, 22AWG Max
    £60.80
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    EdgeLock wire connectors offer space savings and positive locking for secure mating to PCB edge cards. Typically the header is soldered to the PCB, which adds space and assembly steps. Extra steps are involved if rework is required. EdgeLock is a solution for direct mating to PCB Edge-Card. At the same time, the latch can be used to release the assembly easily from the PCB. The demand for positive locking is growing, improving PCB retention forces.This specification details the crimping information and common practices for general crimps for the EDGE LOCK crimp terminal per sales drawing 2004490001.
    Product Details
    MOLEX
    200(Allparts)1742036
    200449-0001
    10 Items

    Data sheet

    Manufacturer
    MOLEX
    Contact material
    phosphor bronze
    Contact plating
    Tin
    A-Supplier
    Allparts-UK/15/R-10
    Series
    EDGELOCK
    For Use With
    EdgeLock Edge Card Connector
    Gender
    Female
    Termination Method
    Crimp or Compression
    Series Number
    200449
