Description

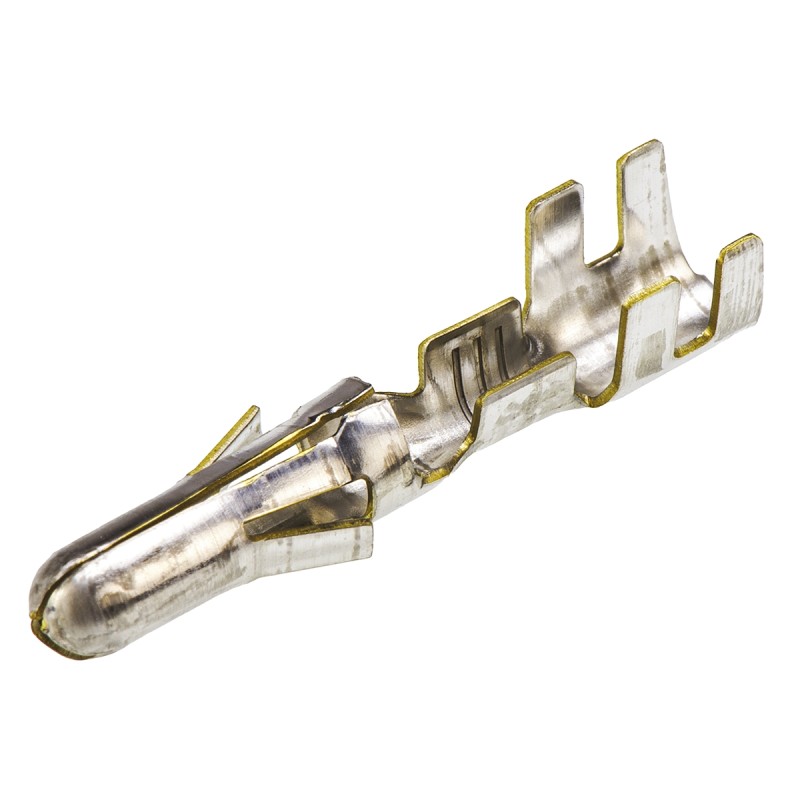

Crimp ContactsFor use with .140 MATE-N-LOCK pin and socket housingsDual locking lances assure optimum contact stabilityBrass or phosphor bronzeNoteNo insertion tool is recommended for the .140 MATE-AND-LOCK contacts because the contacts handle larger wire sizesTE Connectivity .140 MATE-N-LOCK HousingsInternal equipment connection wire-to wire for discrete wire 6.09mm (.24 in) pitch,Contacts accept wire size range 20 - 10 AWG (.5 - 5 mm²)Fully polarized nylon housingsLow insertion/extraction forcesContacts fully protected in housingFor suitable contacts see typically stock no 660-0952 pin contact, 660-0978 socket contact
Product Details
50(Allparts)7099802
350389-1
10 Items
Data sheet
- Manufacturer
- TE Connectivity
- Contact material
- brass
- Contact plating
- Tin
- A-Supplier
- Allparts-UK/15/R-10
- Series
- Commercial MATE-N-LOK
- For Use With
- Commercial MATE-N-LOK Connector Housing
- Maximum Operating Temperature
- +105°C
- Minimum Operating Temperature
- -55°C
- Gender
- Male
- Termination Method
- Crimp
