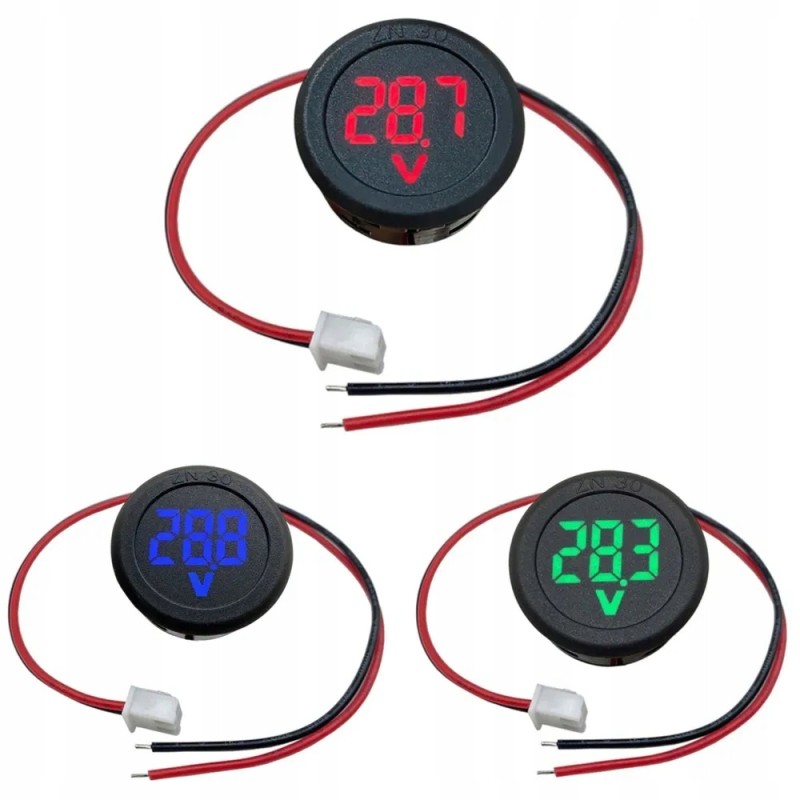

DC 5 100v panel voltmeter, mix of 3 colors
  • DC 5 100v panel voltmeter, mix of 3 colors
  • DC 5 100v panel voltmeter, mix of 3 colors
  • DC 5 100v panel voltmeter, mix of 3 colors
  • DC 5 100v panel voltmeter, mix of 3 colors
  • DC 5 100v panel voltmeter, mix of 3 colors
  • DC 5 100v panel voltmeter, mix of 3 colors
  • DC 5 100v panel voltmeter, mix of 3 colors
  • DC 5 100v panel voltmeter, mix of 3 colors
  • DC 5 100v panel voltmeter, mix of 3 colors

DC 5 100v panel voltmeter, mix of 3 colors

15014694491094
£11.89
Quantity
5 Items

Description
DC VOLTMETER 5-100V PANEL COLOR MIX Product features:

Round hole

Easy installation

Reverse connection protection

Measuring range: 4V-100V DC

Power supply range: 4V-100V DC

Minimum start-up: 3.8V DC

Allowable error: ± 1%

Input impedance: >,100K ohms

Operating current: red <,15mA, green <,12mA, blue <,12mA

Refresh speed: about 300mS/time

Display color: red, green, blue optional

Length of power cord: 20cm

Overall dimension: 33.8 diameter

Hole size: MOUNTING diameter 30.0 mm

Operating temperature: -10℃ ~ 65

Note:

input voltage higher than 100V WILL PERMANENTLY DAMAGE THE MODULE

PLEASE SELECT COLOR AFTER PURCHASE:

RED GREEN BLUE

NO SELECTION = RANDOM

Product Details
15014694491094
DC-X1 VOLTMETER
5 Items
New

Data sheet

Part Number
DC-X1 VOLTMETER
Packaging condition
no packaging
Producer
no brand
