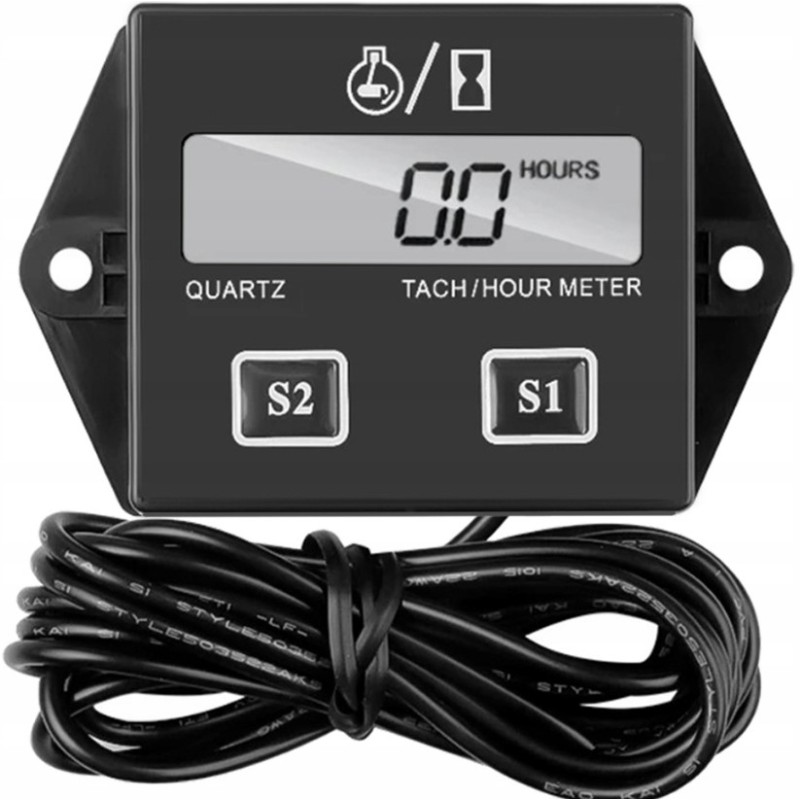

Tachometer, engine hour counter, mower operating time

Electronic hour counter with service + reset + tachograph function. A small operating hours counter for combustion engines allows you to precisely control the wear of the engine and other components in devices such as motorbikes, scooters, combustion lawn mowers, power generators, quads and many others. The universal design means that it can be used for all petrol engines, both two- and four-piston engines.

Measurement start: automatically after starting the engine

Energy saving function: screen goes off when idle

SERVICE function: yes

RESET function : yes

Measurement range: 9999.9 h

Measurement accuracy: 0.1 h

Shockproof: yes

Max. operating temperature: 85 degrees Celsius

Dimensions: 41mm x 46.7mm x 73.5mm

Cable length: approx. 190 cm

Advantages of the device: hour counter, tachograph and rev counter functions

SERVICE mode and RESET function

energy saving mode

counts the operating time of combustion engines (2T and 4T)

measurement with an accuracy of 0.1h

maximum recording time of almost 10,000 hours

easy installation

EASY INSTALLATIONThe installation is carried out using the included cable, which it is wrapped several times as close to the spark plug wire as possible and then secured with cable ties. The operating hours counter can be installed anywhere, e.g. on double-sided tape, and it also has holes for attaching bands.

ADDITIONAL FUNCTIONS1 - TACHOMETER

Press and hold the S1 button. The display will display 01 (spark plug lights twice per revolution) 02 (once per revolution) 03 (every other revolution) 04 (only the time does not display revolutions per minute). Once you have found the appropriate spark plug pattern, release the S1 button. The display will flash for 8-10 seconds and return to total hour counter mode. The value of the standard model is 02.

S2 - SERVICE MODE

Press the S2 button for 4 seconds. The first digit on the right will flash and the SERVICE icon will appear. Pressing and holding the S1 button will automatically increase the flashing digit. After reaching the desired digit, release the S1 button. Repeat the operation until the service interval is entered.

S1 + S2 - RESET FUNCTION

Revolution measurement (RPM) and tachograph function. Thanks to many operating modes, the counter can also function as an independent tachometer and tachograph. After programming, the device shows the RPM while the engine is running and counts down the time since its last start. A detailed description of how to program the device in the Polish user manual attached to the set.
