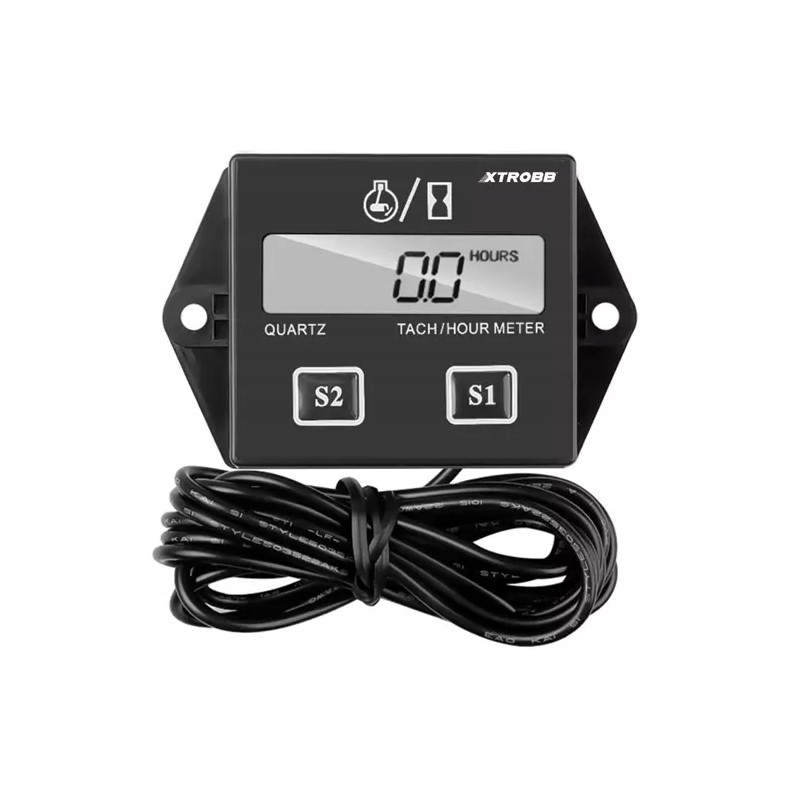

Operating hours counter for motorcycle lawn mower

UNIVERSAL MOTOR HOUR COUNTER - the motor hour counter is a universal device - it will be compatible with all 2- and 4-piston combustion engines. The engine operating hours counter can be used, among others, in motorcycles, lawn mowers, quads, power generators, scooters, etc.

PRACTICAL - the engine hour counter measures the engine speed with high sensitivity, which allows for precise control of the wear of the engine and the components working with it. Its measurement accuracy is 0.1 hour and the measurement range is up to 9999.9 h.

DURABLE - the engine operating time counter is very solid and durable, which increases the possibilities of its use. This counter is not only shockproof, but also waterproof and can operate at temperatures up to 85°C.

SERVICE MODE + RESET FUNCTION + RPM MEASUREMENT - SERVICE mode allows you to set the countdown of the time remaining until the next visit to the mechanic. The RESET function allows you to reset the counter when you connect it to another device or repair it. The counter can also function as an independent tachometer (RPM).

SPECIFICATION - measurement range: 9999.9 h, measurement accuracy: 0.1 h, waterproof, shockproof, max. operating temperature: 85°C, for all 2 and 4 piston combustion engines, dimensions: 7.5 x 4.5 x 2cm, cable length: 185cm, weight: 53g, weight in package: 69g.

SPECIFICATIONS

measurement range: 9999.9 h

measurement accuracy: 0.1 h

waterproof, shockproof

max. operating temperature: 85°C

for all 2 and 4 piston combustion engines

dimensions: 7.5 x 4.5 x 2cm

cable length: 185cm

weight: 53g

weight in package: 69g

ADVANTAGES built-in battery

turns on automatically after starting the engine

after turning off the engine, it displays engine hours

helpful in controlling service activities

easy and quick installation

Polish language manual included

suitable for 2T and 4T

engines RPM range 0-9999.9

waterproof and shockproof

service mode

reset function

tachometer

ADDITIONAL FUNCTIONS S1 - TACHOMETER

Press and hold the S1 button. The display will display 01 (spark plug lights twice per revolution) 02 (once per revolution) 03 (every other revolution) 04 (only the time does not display revolutions per minute). Once you have found the appropriate spark plug pattern, release the S1 button. The display will flash for 8-10 seconds and return to total hour counter mode. The value of the standard model is 02.

S2 - SERVICE MODE

Press the S2 button for 4 seconds. The first digit on the right will flash and the SERVICE icon will appear. Pressing and holding the S1 button will automatically increase the flashing digit. Once the desired digit is reached, release the S1 button. Repeat until the service interval is entered.

S1+S2 - RESET FUNCTION

Catalog number: 00019926
