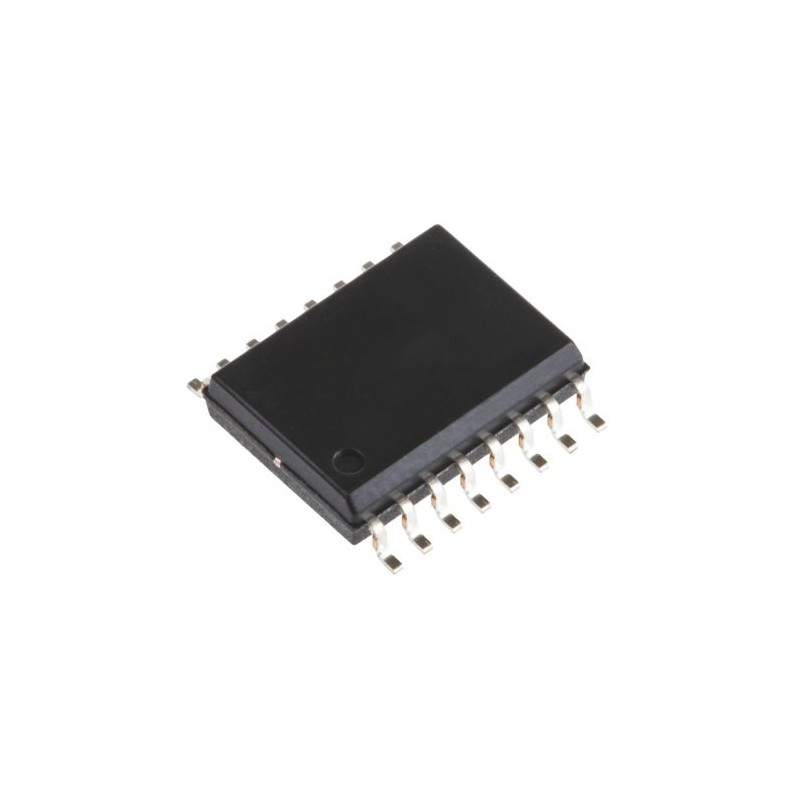

150 pcs - MC74HCT595ADR2G onsemi MC74HCT595ADR2G 8-stage Surface Mount Shift Register HCT, 16-Pin SOIC

The MC74HCT595A consists of an 8 bit shift register and an 8 bit D-type latch with three state parallel outputs. The shift register accepts serial data and provides a serial output. The shift register also provides parallel data to the 8 bit latch. The shift register and latch have independent clock inputs. This device also has an asynchronous reset for the shift register. The HCT595A directly interfaces with the SPI serial data port on CMOS MPUs and MCUs. The device inputs are compatible with standard CMOS or LSTTL outputs.Output Drive Capability: 15 LSTTL LoadsOutputs Directly Interface to CMOS, NMOS, and TTLOperating Voltage Range: 4.5 to 5.5 VLow Input Current: 1.0 uAHigh Noise Immunity Characteristic of CMOS Devices Chip Complexity: 328 FETs or 82 Equivalent Gates
