Cordless hydraulic unit 2 0 kw 12v 8l

12 V 2.0kW hydraulic unit with wireless remote control SKRAW MET CODE: [8387] Manufacturer: SM-G (SKRAW MET GROUP) Allows you to control a single-acting actuator. The actuator extends under the influence of pressure, and retracts using gravitational forces and the lifted weight.

The unit is complete and ready for operation, just connect the cables and pour oil. Recommended continuous operation for no longer than 3 minutes, restarting after 5 minutes of rest.

Application: The unit is perfect for electrically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

It is adapted for unloading work. load box in trailers, dump trucks, hydropacks, races, lifts, loading platforms, car lifts, cranes, agricultural and industrial machines.

Technical specifications: Engine power: 2.0 kW

Electrical voltage: 12 V

Oil tank capacity: 8 L

Maximum operating pressure: 180 bar

Pump capacity: 2.6 cm3/revolution, in this set 7L/min to 12L/min

Internal thread connection: 3/8'

Overflow valve (safety): YES

Dimensions: Unit length : 560 mm

Tank length: 335 mm

Unit width: 170 mm

Tank width: 170 mm

Unit height: 195 mm

Tank height (from the base to the tip of the cap): 205 mm

REMOTE WITH 2 BUTTONS Solid construction This is a dedicated remote control with two buttons, used mainly in hydraulic units powered by 12V / 24V.

Equipped with a mounting pocket that, if necessary, can be attached to two holes with a diameter of 5 mm.

There are also magnets on the back of the remote control, thanks to which the remote control can be attached to metal elements .

Additionally, the remote control includes a cable approximately 4.4 m long with a screw-on 3-pin plug.

All elements are made only of durable, high-quality materials.

Wireless radio remote control 12 V / 24 V, two-function (top - bottom)The remote control is used for a hydraulic unit and derivatives of this type of devices, such as winches/winches or loading elevators.

The remote control is hermetic.

It can be used in agriculture, horticulture, forestry or construction.

The remote control is supplied with:

cover

receiver

lanyard

9V battery

Technical specifications: voltage: 12 V / 24 V

range: up to 50 m

housing: PVC + protective silicone cover

power supply: 9 V battery

remote control dimensions: 150 × 80 × 34 mm

receiver dimensions: 60 × 44 × 23 mm

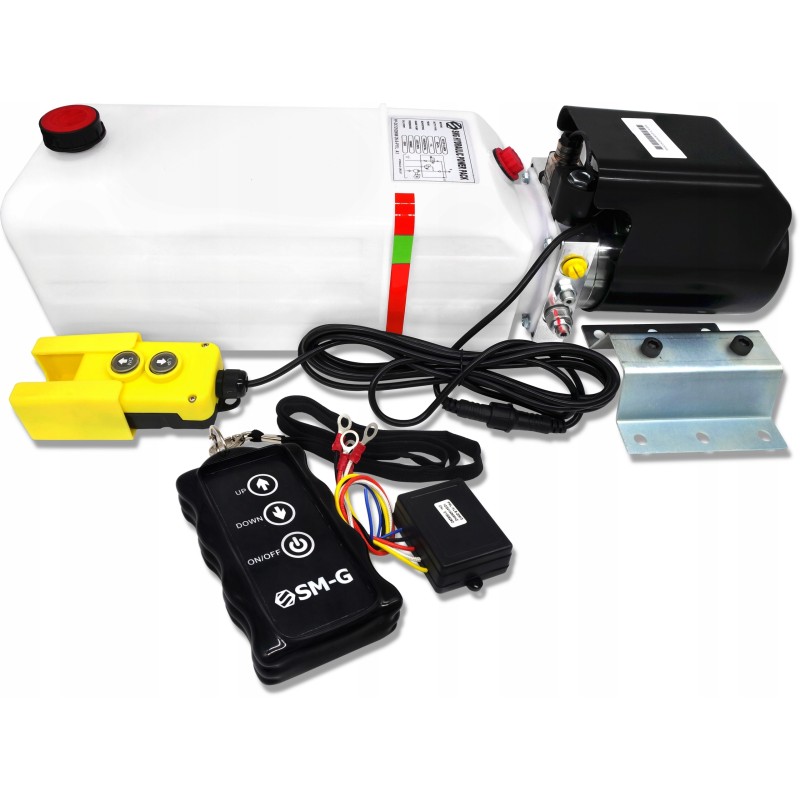

Each unit has a working diagram of the hydraulic system pasted on it. The set includes: pump

electric motor

connecting plate

tank

remote control

The unit also has a plastic cover for the engine and a mounting kit.

Legend of markings: + Power supply (positive potential), connected directly to the battery

- Power supply (negative potential), connected directly to the battery

A - connection port (G3/8')

B - descent speed regulation

C - oil pressure regulation
