Control cable jz 500 14x0 75 300 500v

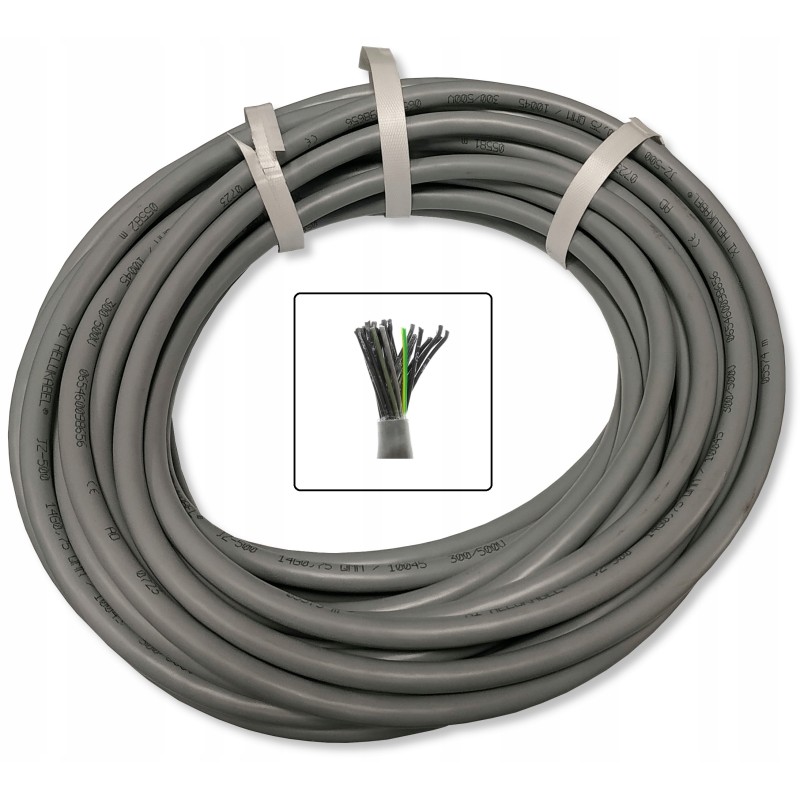

JZ-500 14 G0.75 300/500V drum control cable - Price per 1 m [1990]

Used in control cassettes in the machinery, metallurgical, signaling and measurement industries at conveyors and technological lines.

Conductors numbered in such a way that even small exposure of the outer tire allows the location of the core: to avoid mistakes, the markings are underlined.

A specially selected PVC mixture guarantees excellent flexibility and rational, quick installation.

CE - the product complies with the guidelines of the Low Voltage Directive 2006/95/EG

Technical Specification: Manufacturer : HELUKABEL

Product series: JZ-500

PVC core insulation

PVC outer sheath material

Number of cores 14

Core class Class 5 = flexible

Rated voltage U [V] 500

Rated voltage U0 [V] 300

Approximate outer diameter [ mm] 10.6

Rated cross-section of the conductor [mm2] 0.75

Protective conductor YES

Permissible cable temperature for movable connections [°C] up to 80

Permissible cable temperature for movable connections [°C] from -15

Permissible temperature of the permanently laid cable [ °C] up to 80

Permissible temperature of permanently laid cable [°C] from -40
