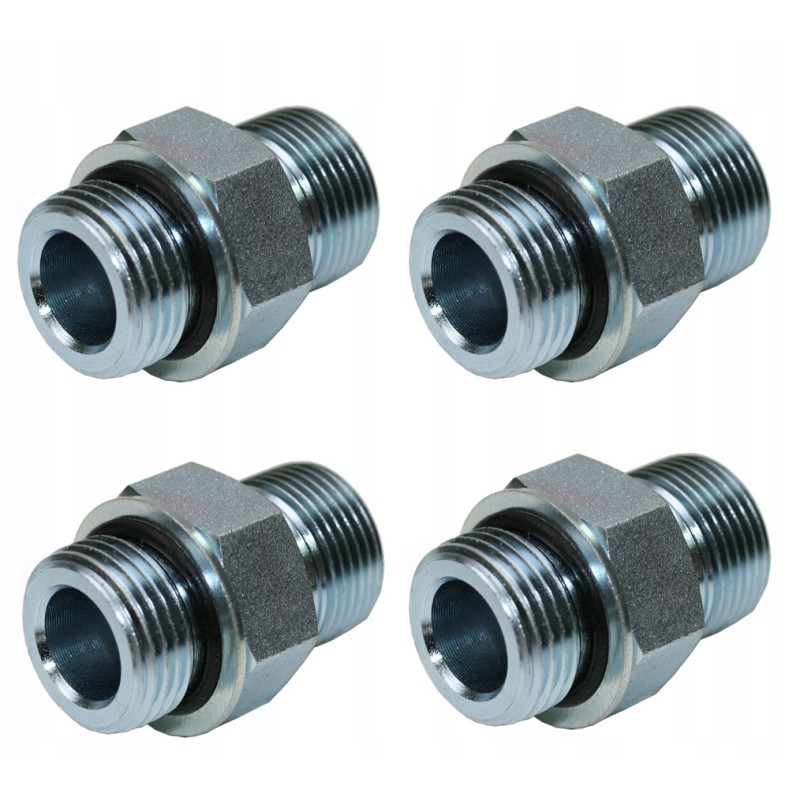

Connections to a 1-section hydraulic distributor, 40l

SET OF CONNECTIONS FOR A 1-SECTION HYDRAULIC DIVIDER, 40L/min, SKRAW-MET CODE:[8095]Application:

Hydraulic connections are perfect for hydraulically powered machines and devices. They can be used in agriculture, horticulture, forestry and construction.

They allow the connection of a hydraulic distributor with pipes.

Technical data:

1 pc. concerns a set of 4 connections.

The set includes a supply connection, a return connection and 2 connections for the actuator.

Each connection has a rubber sealing, so there is no need to add gaskets.

Threads:

POWER SUPPLY:

Thread on the distributor side, inch BSP: 1/2'

Thread on the side of the hydraulic conduit: M22x1.5

RETURN:

Thread on the distributor side, inch BSP: 1/ 2'

Thread on the hydraulic conduit side: M22x1.5

FOR ACTUATOR:

Thread on the inch BSP distributor side: 3/8'

Thread on the hydraulic conduit side: M18x1.5

Material:

corrosion-resistant galvanized steel

rubber seals
