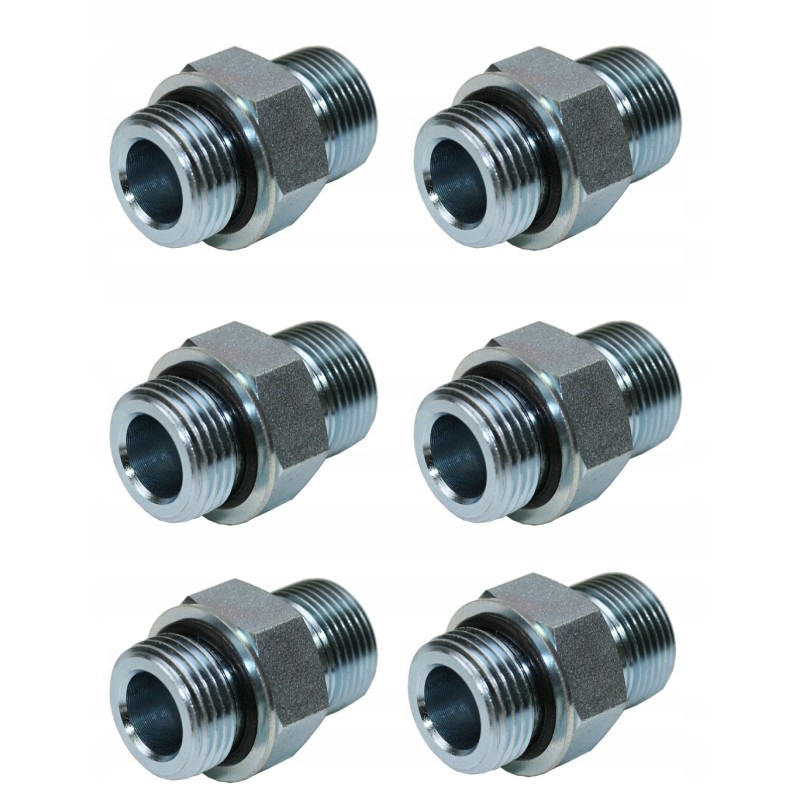

Connections to a 2-section hydraulic distributor, 40l

SET OF CONNECTIONS FOR A 2-SECTION HYDRAULIC DIVIDER, 40L/min, SKRAW-MET CODE:[8002]Application:

Hydraulic connections are perfect for hydraulically powered machines and devices. They can be used in agriculture, horticulture, forestry and construction.

They allow the connection of a hydraulic distributor with pipes.

Technical data:

1 pc. refers to a set of 6 connections. The set includes a power supply, return and 4 actuator connections. Each connection has a rubber seal, so there is no need to add gaskets.

Threads: POWER SUPPLY:

Thread on the distributor side, inch BSP: 1/2'

Thread on the side of the hydraulic conduit: M22x1.5

RETURN:

Thread on the distributor side, inch BSP : 1/2'

Thread on the hydraulic line side: M22x1.5

FOR ACTUATORS:

Thread on the distributor side, inch BSP: 3/8'

Thread on the hydraulic line side: M18x1.5

Material:

corrosion-resistant galvanized steel

rubber seals
