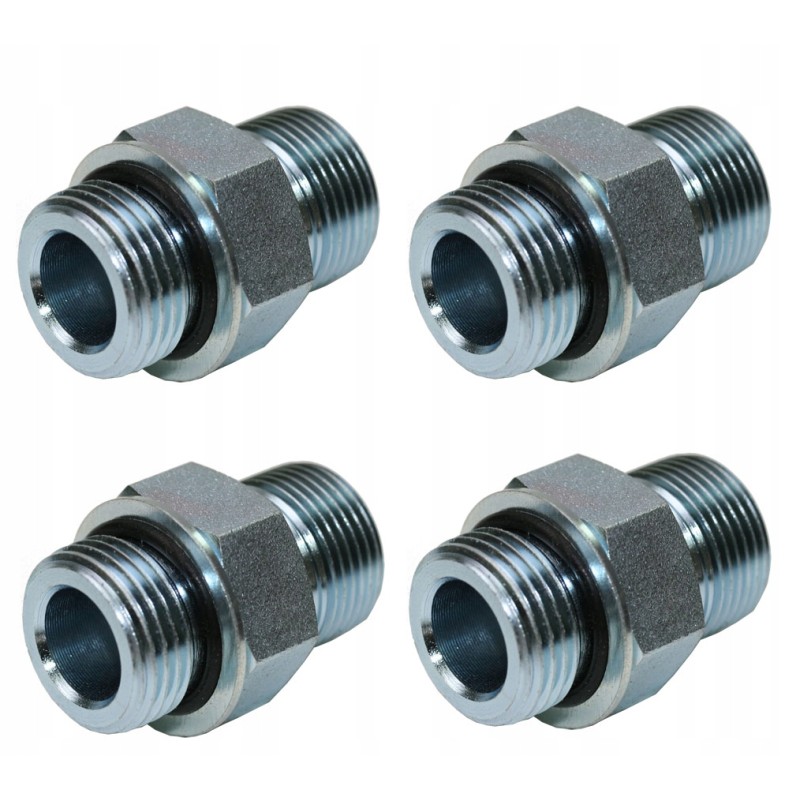

Connections to a 1-section hydraulic distributor, 80l

SET OF CONNECTIONS FOR A 1-SECTION HYDRAULIC DIVIDER, 80L/min, SKRAW-MET CODE: [7224]Application:

Hydraulic connections are perfect for hydraulically powered machines and devices. They can be used in agriculture, horticulture, forestry and construction.

They allow the connection of a hydraulic distributor with pipes.

Technical data:

1 pc. refers to a set of 4 connections. The set includes a power supply, return and 2 actuator connections. Each connection has a rubber seal, so there is no need to add gaskets.

Threads:

POWER SUPPLY:

Thread on the distributor side, inch BSP: 3/4'

Thread on the hydraulic conduit side: M22x1.5

RETURN:

Thread on the distributor side, inch BSP: 3/4'

Thread on the hydraulic conduit side: M22x1.5

FOR ACTUATOR:

Inch BSP thread on the distributor side: 1/2'

Thread on the hydraulic conduit side: M22x1.5

Material:

galvanized steel resistant to corrosion

rubber seals
