Pressure gauge connector connection 63mm ab gw 1 4 gz 16

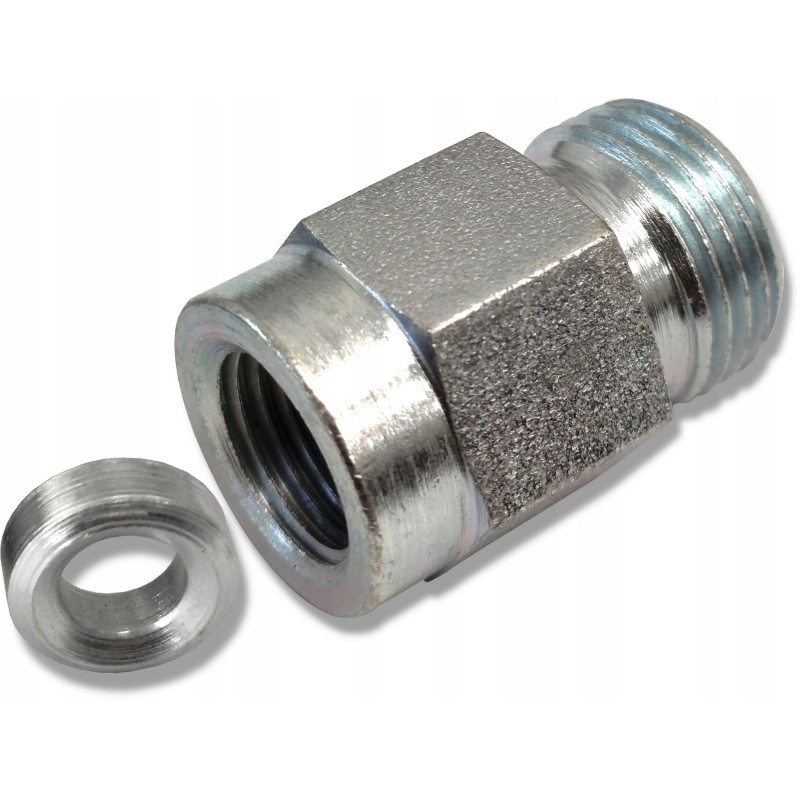

CONNECTION AB CONNECTOR G1/4' - M16x1.5 SKRAW-MET CODE: [2762] Hydraulic connector (metric - inch) type AB - used in hydraulic connections with internal and external thread, as well as for connecting any bodies with flexible element of the hydraulic system.

Also used when we want to connect a pressure gauge with hydraulic lines or connectors, etc.

Fits most of the pressure gauges we have in our offer.

The connection has a sealing ring.

Can be used in agriculture, horticulture, forestry or construction .

Technical Specifications: Thread on the pressure gauge side (on the left side), internal inch G1/4' - with a sealing ring (does not require additional sealing)

Dimensions of the sealing ring: 11 x 4.5 x 6 mm

Thread on the cable side (on the left side) right side) external metric M16x1.5 - with sealing cone: 24°

Connector length: 30 mm

Open-end wrench: 19

Material: Galvanized steel The connection fits, among others, for such pressure gauges (photo):
