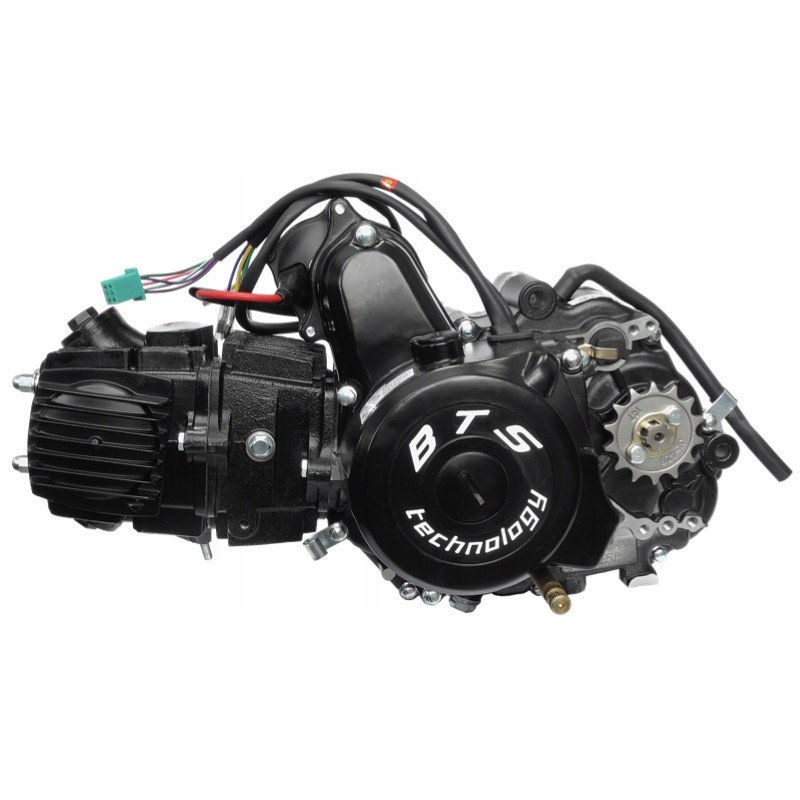

Complete engine bts quad atv 110 139fmb 4t 3 1
  • Complete engine bts quad atv 110 139fmb 4t 3 1
  • Complete engine bts quad atv 110 139fmb 4t 3 1
  • Complete engine bts quad atv 110 139fmb 4t 3 1
  • Complete engine bts quad atv 110 139fmb 4t 3 1
  • Complete engine bts quad atv 110 139fmb 4t 3 1

Complete engine bts quad atv 110 139fmb 4t 3 1

15015035298949
£438.60
Quantity
5 Items

Description
COMPLETE ENGINE ATV 1103 GEARS + 1 REVERSE GEARBTS139FMB/FMH with a capacity of 110cc Cylinder diameter 52.40 mm

Gearbox 3 + 1

Automatic single clutch,

Included: Gear lever

Intake pipe

Speed cover

Flood oil

Technical data:Single cylinder, 4 stroke, air cooling,

Horizontal displacement: 106.7ml

Dimension: 460 * 300 * 260mm

Net weight: 21kg

Max. power: 5.1 / 8000 kW / y / min

Max. torque: 7.2 / 5000 Nm / y / min

Compression ratio: 9.0: 1

Bore and stroke: 52.4 * 49.5 mm

Ignition method: CDI

Lubrication method: pressure spray

Min. fuel consumption g / KW.h <,450

Starting type: electric start

Clutch type: multi-plate oil bath

Gear type: 3 gears with reverse gear

Application:

Quads, ATV 110ccm

Please see other our auctions!

Product Details
15015035298949
SILMOR032
5 Items
New

Data sheet

Part Number
SILMOR032
Original part number
SILMOR032
Product weight with unit packaging
21 kg
Producer
other
Adaptation to the vehicle
dedicated product
