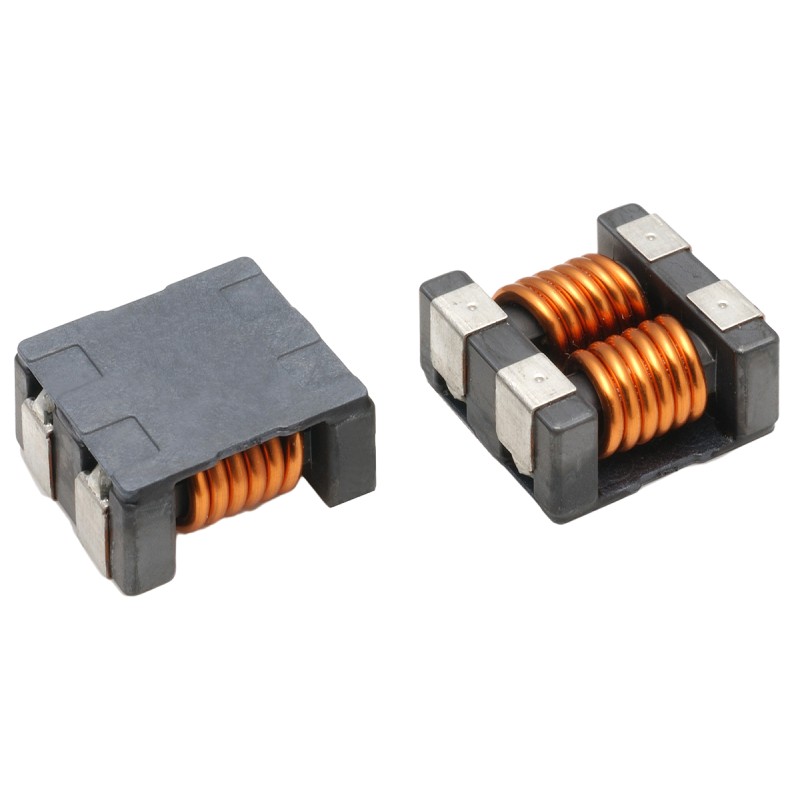

100 pcs - ACM2012-361-2P-T002 TDK 730 nH 220 mA Common mode filter 500mΩ 50V
    • 100 pcs - ACM2012-361-2P-T002 TDK 730 nH 220 mA Common mode filter 500mΩ 50V

    100 pcs - ACM2012-361-2P-T002 TDK 730 nH 220 mA Common mode filter 500mΩ 50V

    100(electronicparts)9164128
    TDK
    100 pcs - ACM2012-361-2P-T002 TDK 730 nH 220 mA Common mode filter 500mΩ 50V
    £49.02
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    TDK ACM Series SMD Common Mode ChokesMiniature SMD common-mode wire wound chip filtersCommon-mode impedance >,1000Ω at 100MHz Due to low differential mode impedance there is almost no affect upon high speed signals 2-line and 3-line type availableOperating temperature range -25°C to +85°C Applications include radiation and common-mode noise suppression, USB and IEEE1394 computer lines, LVDS panel link linesTDK SMD Common Mode Chokes
    Product Details
    TDK
    100(electronicparts)9164128
    ACM2012-361-2P-T002
    10 Items

    Data sheet

    Manufacturer
    TDK
    Dimensions
    2 x 1.2 x 1.3mm
    Impedance
    360 Ω
    Height
    1.3mm
    Length
    2mm
    Maximum current
    220 mA
    Depth
    1.2mm
    A-Supplier
    Allparts-UK/15/R-12
    Series
    ACM
    Voltage Rating
    50V
    Maximum Operating Temperature
    +85°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -40°C
    Operating Temperature Range
    -40°C - +85°C
    Termination Style
    Surface Mount
    Inductance
    730 nH
    Package/Case
    2012
    Test Frequency
    100 MHz
    DC Resistance
    500mΩ
    Number of Lines
    2
