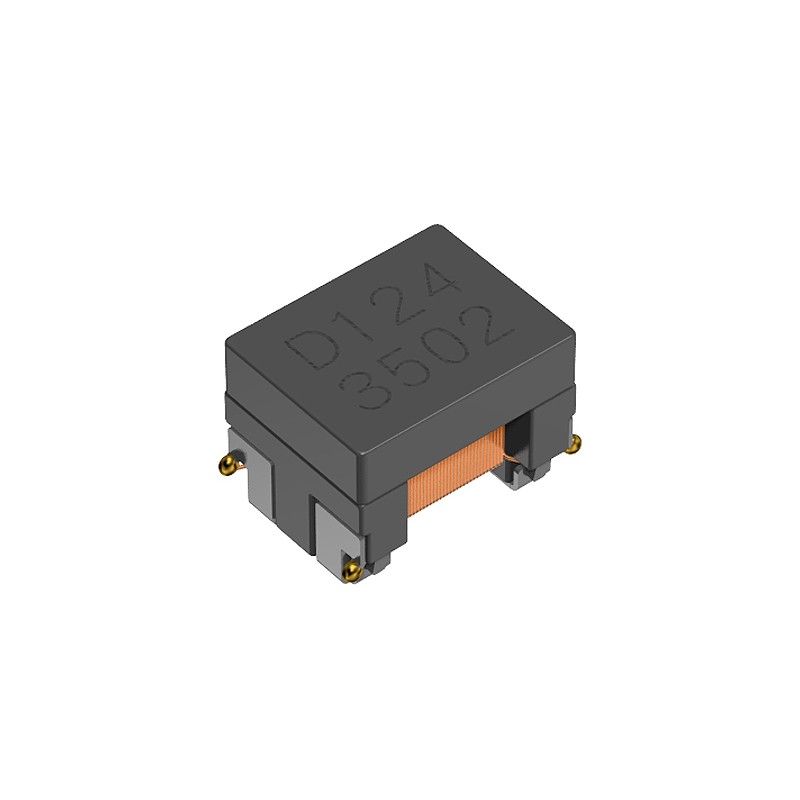

    50 pcs - ACT1210-110-2P-TL00 TDK 11 μH 300 mA Common mode filter 0.4Ω 80V
    • 50 pcs - ACT1210-110-2P-TL00 TDK 11 μH 300 mA Common mode filter 0.4Ω 80V

    50 pcs - ACT1210-110-2P-TL00 TDK 11 μH 300 mA Common mode filter 0.4Ω 80V

    50(electronicparts)1138594
    TDK
    50 pcs - ACT1210-110-2P-TL00 TDK 11 μH 300 mA Common mode filter 0.4Ω 80V
    £51.86
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    TDK ACT1210 Series SMD Common Mode ChokesACT common filters from TDK are a compact solution, and offer the same characteristics of the standard products (ACT45B/ACT45R) in a smaller package. With the ability to withstand temperatures ranging from -55°C to +155°C, these common mode filters are suitable for CAN-BUS and FlexRay applications.AEC-Q200 qualified Suitable for automobile signal linesHalogen freeCompatible with lead free soldersTDK SMD Common Mode Chokes
    Product Details
    TDK
    50(electronicparts)1138594
    ACT1210-110-2P-TL00
    10 Items

    Data sheet

    Manufacturer
    TDK
    Dimensions
    3.2 x 2.5 x 2.5mm
    Impedance
    300 mΩ
    Height
    2.5mm
    Length
    3.2mm
    Maximum current
    300 mA
    Depth
    2.5mm
    A-Supplier
    Allparts-UK/15/R-12
    Series
    ACT
    Voltage Rating
    80V
    Maximum Operating Temperature
    +150°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -55°C
    Operating Temperature Range
    -55°C - +150°C
    Termination Style
    Surface Mount
    Inductance
    11 μH
    Package/Case
    1210 (3225M)
    Test Frequency
    10 MHz
    DC Resistance
    0.4Ω
    Number of Lines
    2
