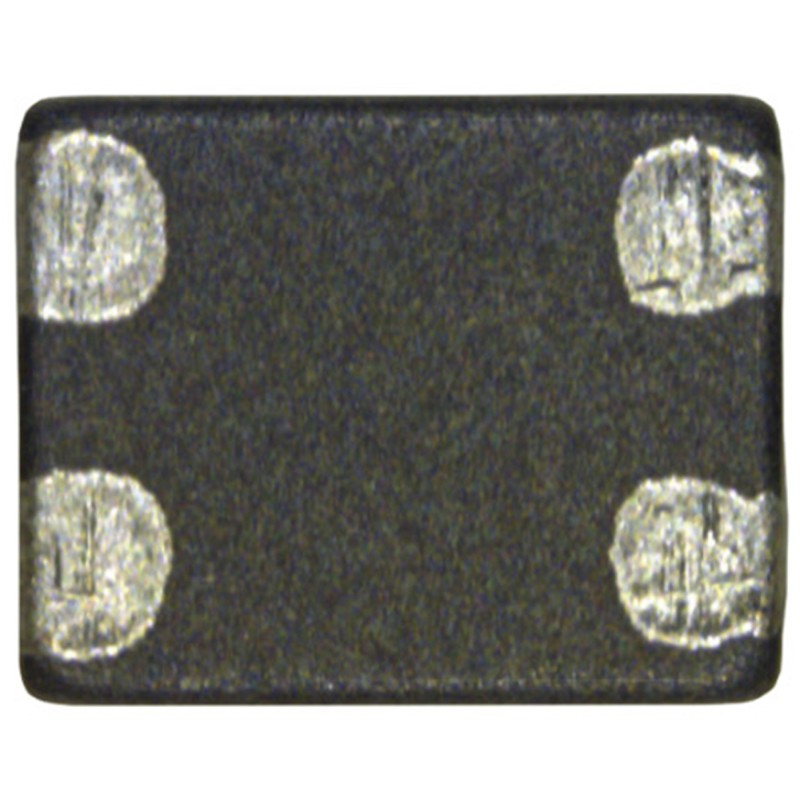

    50 pcs - DLP11SN121SL2L Murata 140 mA Common Mode Choke 2Ω
    • 50 pcs - DLP11SN121SL2L Murata 140 mA Common Mode Choke 2Ω

    50 pcs - DLP11SN121SL2L Murata 140 mA Common Mode Choke 2Ω

    50(electronicparts)8390871
    MURATA
    50 pcs - DLP11SN121SL2L Murata 140 mA Common Mode Choke 2Ω
    £56.77
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Murata 0504 DLP11S Series SMD Common Mode ChokesDLP11S series enables noise suppression for differential signal line without distortion in high-speed signal transmission due to its high coupling. The DLP11S series high cutoff frequency is suitable for high speed differential signal line such as HDMI.Small size and tight dimensional tolerance Size: 1.25x1.0x0.82mm Tolerance: +-0.1mmUseful impedance line-up from 67 ohm to 330 ohmDLP11SN_HL2, DLP11SA series match with line impedanceApplicationsCommon mode noise suppression of high speed differential signal lines for USB, IEEE1394, LVDSNote PCs, PDAsCellular phonesDigital Still Cameras, Digital Video CamerasMurata SMD Common Mode Chokes
    Product Details
    MURATA
    50(electronicparts)8390871
    DLP11SN121SL2L
    10 Items

    Data sheet

    Manufacturer
    MURATA
    Dimensions
    1.25 x 1 x 0.82mm
    Impedance
    120 Ω
    Height
    0.82mm
    Length
    1.25mm
    Maximum current
    140 mA
    Depth
    1mm
    A-Supplier
    Allparts-UK/15/R-12
    Series
    DLP11S
    Maximum Operating Temperature
    +85°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -40°C
    Operating Temperature Range
    -40°C - +85°C
    Termination Style
    Solder Pad
    Package/Case
    504
    Test Frequency
    100 MHz
    DC Resistance
    2Ω
    Number of Lines
    2
