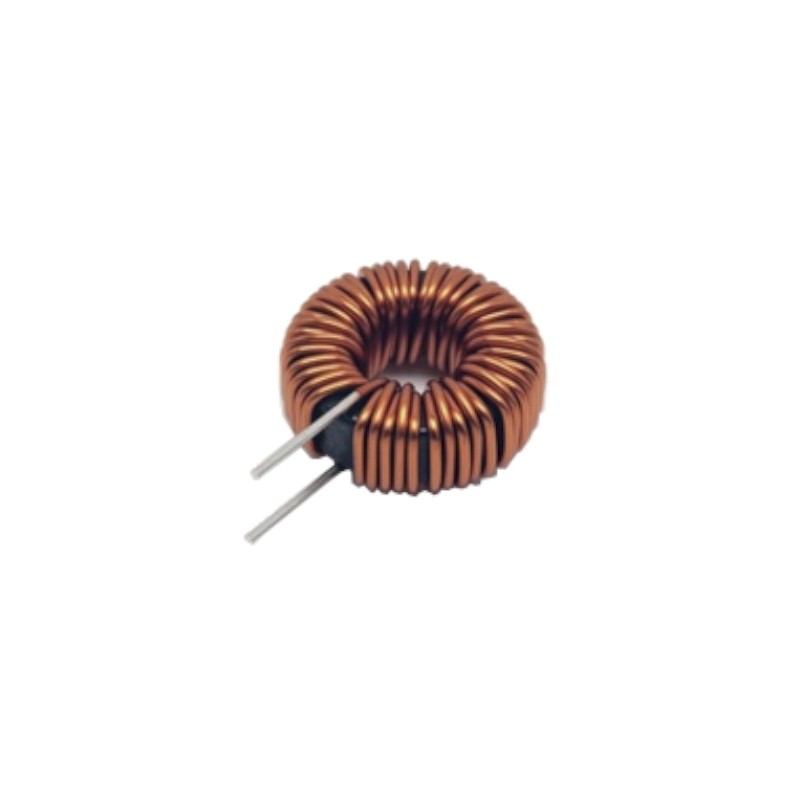

10 pcs - SHBC14-1R2A0067V KEMET 67 μH 8 A Common Mode Choke 22.2mΩ
    • 10 pcs - SHBC14-1R2A0067V KEMET 67 μH 8 A Common Mode Choke 22.2mΩ

    10 pcs - SHBC14-1R2A0067V KEMET 67 μH 8 A Common Mode Choke 22.2mΩ

    10(electronicparts)1836940
    KEMET
    10 pcs - SHBC14-1R2A0067V KEMET 67 μH 8 A Common Mode Choke 22.2mΩ
    £52.64
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    The KEMET SHBC coils are normal mode chokes with a wide variety of characteristics. These coils are designed with Fe-Si-Al dust cores and are useful in various fields such as DC/DC converters as well as normal noise countermeasures.Fe-Si-Al dust core materialAvailable for smoothing and convertingLow core lossHigh frequency driveWide variety of sizes and specificationsOperating temperature range from−40°C to +125°CApplicationsSwitching power supply outletDC-DC converterPhase compensationBoost converter
    Product Details
    KEMET
    10(electronicparts)1836940
    SHBC14-1R2A0067V
    10 Items

    Data sheet

    Manufacturer
    KEMET
    Dimensions
    33.5 (Dia.) x 17.1mm
    Height
    33.5mm
    Maximum current
    8 A
    Depth
    17.1mm
    A-Supplier
    Allparts-UK/15/R-12
    Series
    SHBC
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -40°C
    Operating Temperature Range
    -40°C - +125°C
    Termination Style
    Solder Pad
    Inductance
    67 μH
    Test Frequency
    100 kHz
    DC Resistance
    22.2mΩ
    Number of Lines
    2
