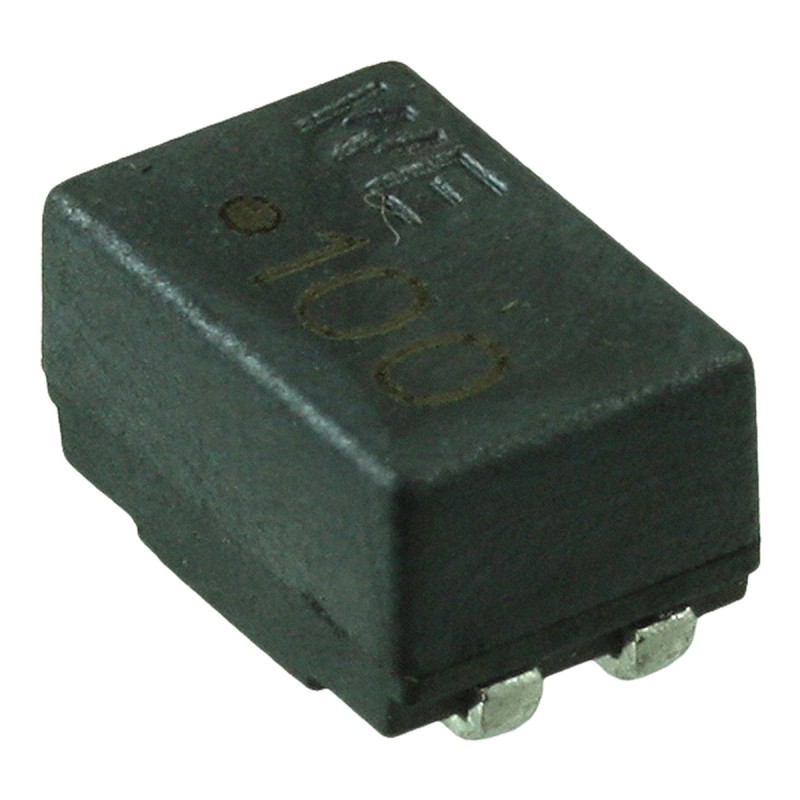

    10 pcs - 744227S Wurth Elektronik 2 x 51 μH 1 A Common mode filter 2 x 0.16Ω 80V
    • 10 pcs - 744227S Wurth Elektronik 2 x 51 μH 1 A Common mode filter 2 x 0.16Ω 80V

    10 pcs - 744227S Wurth Elektronik 2 x 51 μH 1 A Common mode filter 2 x 0.16Ω 80V

    10(electronicparts)9040417
    10 pcs - 744227S Wurth Elektronik 2 x 51 μH 1 A Common mode filter 2 x 0.16Ω 80V
    £52.38
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Wurth WE-SL2 Series SMD Common Mode ChokesDouble current-compensated ring core choke4-way SMD housingCurrent rating up to 1.6AImpedances up to 9kΩApplicationsChokes for bus systems such as CAN, USB, ISDNSignal and data line filteringPower suppliesMeasuring signal linesCommon Mode ChokeRing core with the core materials of NiZn and MnZnOperating temperature: –40 °C to +125 °COperating voltage: 80 VDC (42 VAC)Recommended solder profile: ReflowCurrent compensated choke for data and signal linesPower supply systemsSignal and sensor linesCANSuppression for common mode noiseWurth SMD Common Mode Chokes
    Product Details
    Wurth Elektronik
    10(electronicparts)9040417
    744227S
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Dimensions
    9.2 x 6 x 5mm
    Height
    5mm
    Length
    9.2mm
    Maximum current
    1 A
    Depth
    6mm
    A-Supplier
    Allparts-UK/15/R-12
    Series
    WE-SL2
    Voltage Rating
    80V
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -40°C
    Operating Temperature Range
    -40°C - +125°C
    Termination Style
    Surface Mount
    Inductance
    2 x 51 μH
    Test Frequency
    1 KHz
    DC Resistance
    2 x 0.16Ω
