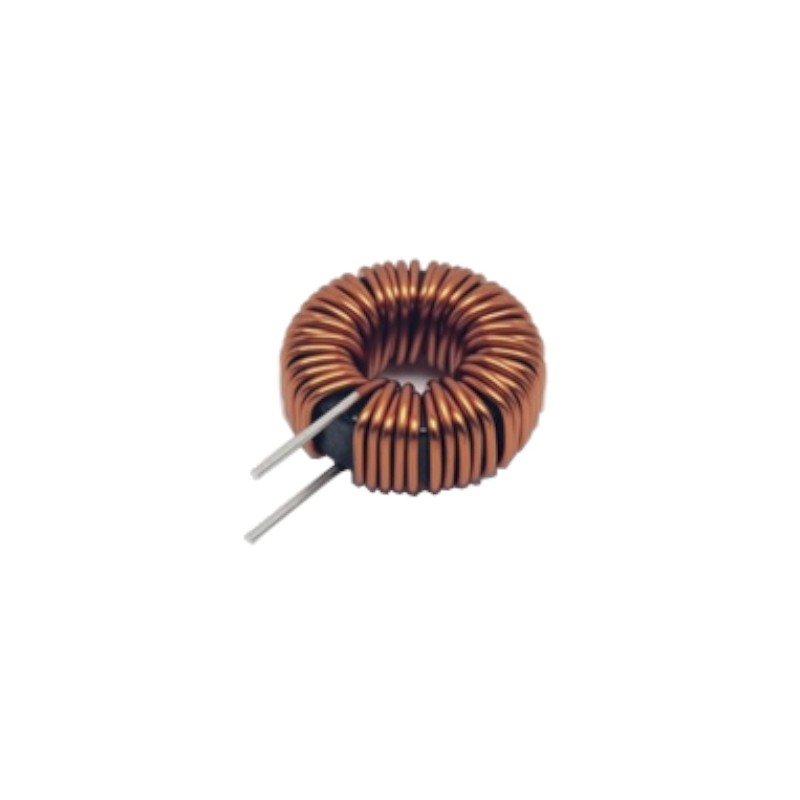

10 pcs - SHBC13-1R2A0081V KEMET 81 μH 6 A Common Mode Choke 24.7mΩ
    • 10 pcs - SHBC13-1R2A0081V KEMET 81 μH 6 A Common Mode Choke 24.7mΩ

    10 pcs - SHBC13-1R2A0081V KEMET 81 μH 6 A Common Mode Choke 24.7mΩ

    10(electronicparts)1836841
    KEMET
    10 pcs - SHBC13-1R2A0081V KEMET 81 μH 6 A Common Mode Choke 24.7mΩ
    £52.12
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    The KEMET SHBC coils are normal mode chokes with a wide variety of characteristics. These coils are designed with Fe-Si-Al dust cores and are useful in various fields such as DC/DC converters as well as normal noise countermeasures.Fe-Si-Al dust core materialAvailable for smoothing and convertingLow core lossHigh frequency driveWide variety of sizes and specificationsOperating temperature range from−40°C to +125°CApplicationsSwitching power supply outletDC-DC converterPhase compensationBoost converter
    Product Details
    KEMET
    10(electronicparts)1836841
    SHBC13-1R2A0081V
    10 Items

    Data sheet

    Manufacturer
    KEMET
    Dimensions
    30 (Dia.) x 15.7mm
    Height
    30mm
    Maximum current
    6 A
    Depth
    15.7mm
    A-Supplier
    Allparts-UK/15/R-12
    Series
    SHBC
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -40°C
    Operating Temperature Range
    -40°C - +125°C
    Termination Style
    Solder Pad
    Inductance
    81 μH
    Test Frequency
    100 kHz
    DC Resistance
    24.7mΩ
    Number of Lines
    2
