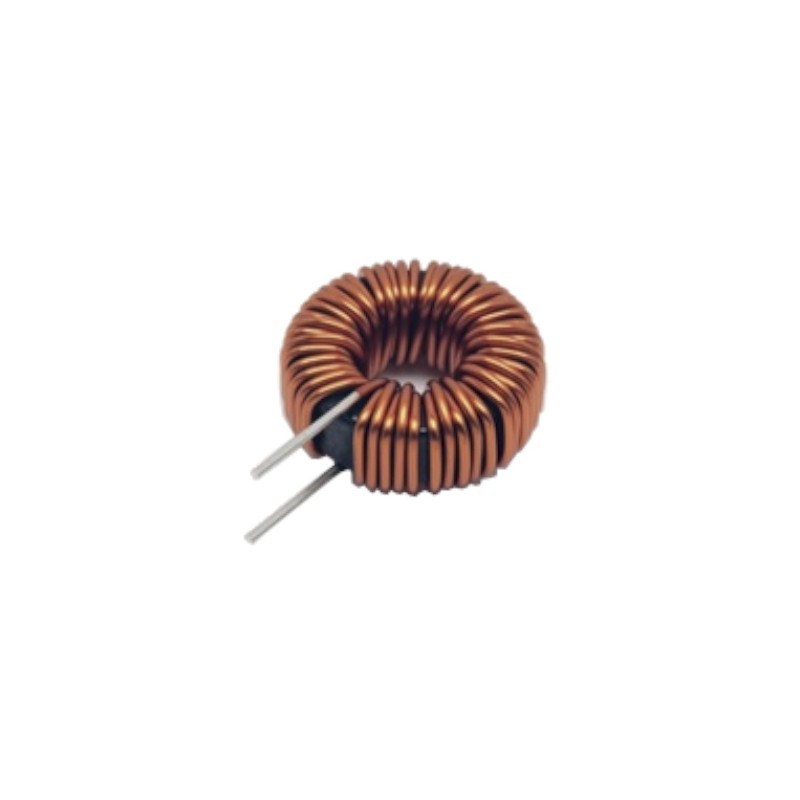

    10 pcs - SHBC12-1R0A0028V KEMET 28 μH 5 A Common Mode Choke 21.1mΩ
    • 10 pcs - SHBC12-1R0A0028V KEMET 28 μH 5 A Common Mode Choke 21.1mΩ

    10 pcs - SHBC12-1R0A0028V KEMET 28 μH 5 A Common Mode Choke 21.1mΩ

    10(electronicparts)1836779
    KEMET
    10 pcs - SHBC12-1R0A0028V KEMET 28 μH 5 A Common Mode Choke 21.1mΩ
    £38.17
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    The KEMET SHBC coils are normal mode chokes with a wide variety of characteristics. These coils are designed with Fe-Si-Al dust cores and are useful in various fields such as DC/DC converters as well as normal noise countermeasures.Fe-Si-Al dust core materialAvailable for smoothing and convertingLow core lossHigh frequency driveWide variety of sizes and specificationsOperating temperature range from−40°C to +125°CApplicationsSwitching power supply outletDC-DC converterPhase compensationBoost converter
    Product Details
    KEMET
    10(electronicparts)1836779
    SHBC12-1R0A0028V
    10 Items

    Data sheet

    Manufacturer
    KEMET
    Dimensions
    26 (Dia.) x 12.1mm
    Height
    26mm
    Maximum current
    5 A
    Depth
    12.1mm
    A-Supplier
    Allparts-UK/15/R-12
    Series
    SHBC
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -40°C
    Operating Temperature Range
    -40°C - +125°C
    Termination Style
    Solder Pad
    Inductance
    28 μH
    Test Frequency
    100 kHz
    DC Resistance
    21.1mΩ
    Number of Lines
    2
