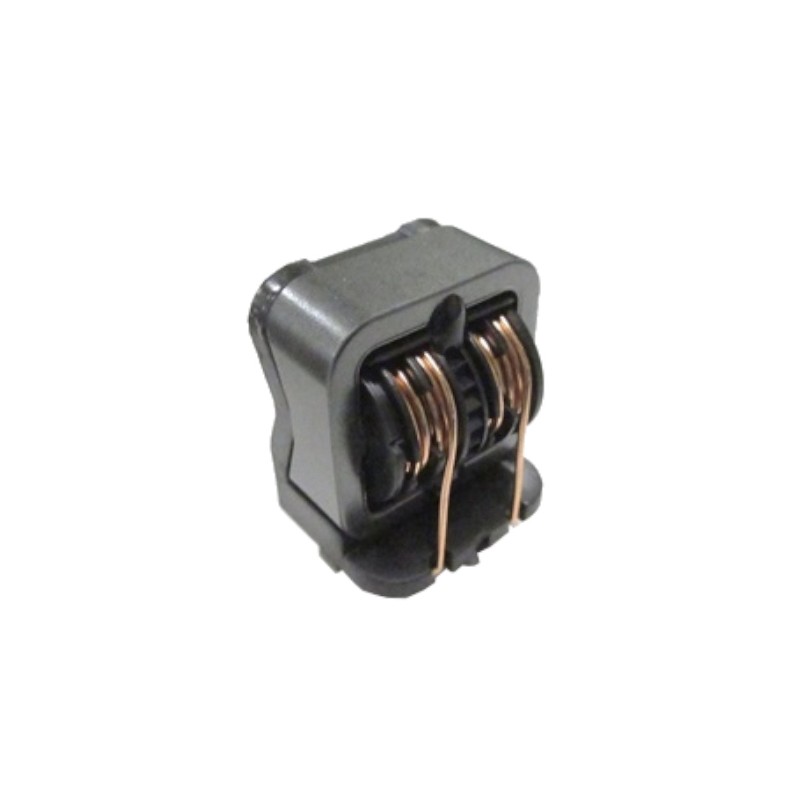

    10 pcs - SSRH24NVS-30092 KEMET 9.2 mH 3 A Common Mode Choke 0.079Ω
    • 10 pcs - SSRH24NVS-30092 KEMET 9.2 mH 3 A Common Mode Choke 0.079Ω

    10 pcs - SSRH24NVS-30092 KEMET 9.2 mH 3 A Common Mode Choke 0.079Ω

    10(electronicparts)1836744
    KEMET
    10 pcs - SSRH24NVS-30092 KEMET 9.2 mH 3 A Common Mode Choke 0.079Ω
    £37.86
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    The KEMET SSRH24NV/NH coils are common mode chokes with a wide variety of characteristics. These gear type coils are designed with our proprietary high permeability ferrite S18H cores and are useful in various noise countermeasure fields. The optimized core shape and product structure is ideal for demanding compact applications where large inductance is required.Proprietary S18H ferrite materialHigh permeabilityHigh impedance in wide frequency range due to divided bobbinExpanded current range up to 5ACompact size and light weightOperating temperature range from −25°C to +120°CFlame retardant base and bobbinApplicationsAudio-visual equipmentOffice automation equipmentDigital appliancesPower supplies
    Product Details
    KEMET
    10(electronicparts)1836744
    SSRH24NVS-30092
    10 Items

    Data sheet

    Manufacturer
    KEMET
    Dimensions
    25.5 x 20 x 31mm
    Height
    31mm
    Length
    25.5mm
    Maximum current
    3 A
    Depth
    20mm
    A-Supplier
    Allparts-UK/15/R-12
    Series
    SSRH
    Maximum Operating Temperature
    +120°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -25°C
    Operating Temperature Range
    -25°C - +120°C
    Termination Style
    Solder Pad
    Inductance
    9.2 mH
    Test Frequency
    10 KHz
    DC Resistance
    0.079Ω
    Number of Lines
    2
