    10 pcs - B82787C0104H002 EPCOS 100 μH 150 mA Common Mode Choke 2Ω
    • 10 pcs - B82787C0104H002 EPCOS 100 μH 150 mA Common Mode Choke 2Ω

    10 pcs - B82787C0104H002 EPCOS 100 μH 150 mA Common Mode Choke 2Ω

    10(electronicparts)7740553
    EPCOS
    10 pcs - B82787C0104H002 EPCOS 100 μH 150 mA Common Mode Choke 2Ω
    £23.95
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description

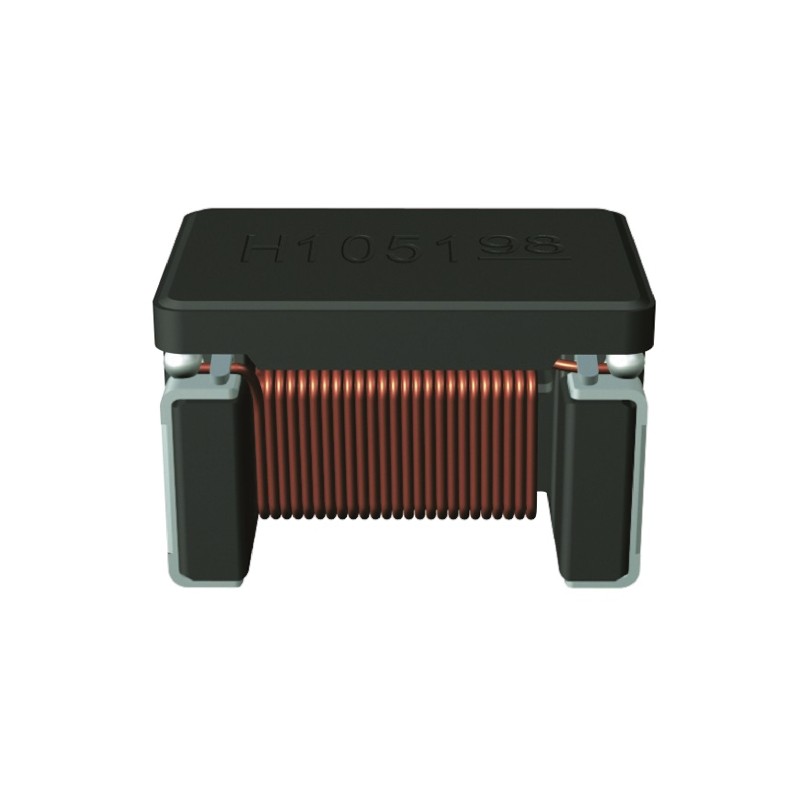

    Epcos 1812 ACT45B Series Common Mode ChokesFrom Epcos, these ACT45B series common mode chokes are for data and signal line applications. The ACT45B’s are current-compensated double choke chokes with a ferrite core and are designed for Automotive CAN bus system applications. They are suitable for lead-free re-flow soldering as referenced in JEDEC J-STD 020D.Features and Benefits:• Common-mode chokes, EIA 1812• Enamel copper wire winding• Winding welded to terminals• Qualified to AEC-Q200• RoHS-compatibleEpcos SMD Common Mode Chokes
    Product Details
    EPCOS
    10(electronicparts)7740553
    B82787C0104H002
    10 Items

    Data sheet

    Manufacturer
    EPCOS
    Dimensions
    4.5 x 3.2 x 2.8mm
    Impedance
    2000 Ω
    Height
    2.8mm
    Length
    4.5mm
    Maximum current
    150 mA
    Depth
    3.2mm
    A-Supplier
    Allparts-UK/15/R-12
    Series
    ACT45B
    Maximum Operating Temperature
    +150°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -40°C
    Operating Temperature Range
    -40°C - +150°C
    Termination Style
    Surface Mount
    Inductance
    100 μH
    Automotive Standard
    AEC-Q200
    Test Frequency
    10 MHz
    DC Resistance
    2Ω
