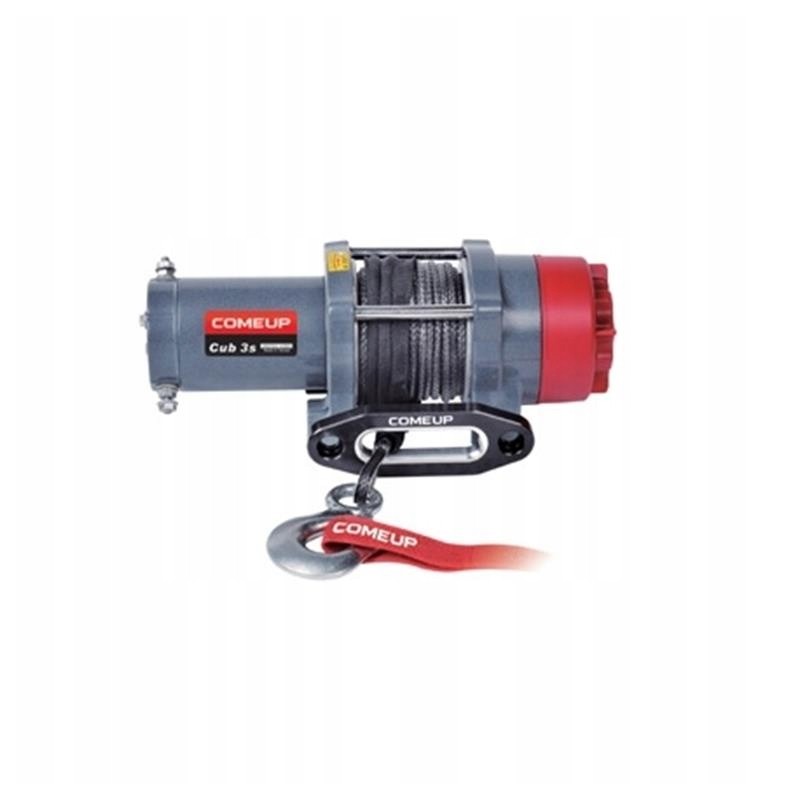

Comeup Cub3 electric winch 12v synthetic rope

Electric winch ComeUp CUB3s 12V - synthetic rope ComeUp CUB3 12V electric winch - synthetic rope. The price is for one piece.

The winch includes:

wired remote control, roller rope guide,

a synthetic rope ended with a thimble wound on a winch,

hook, control box with connection cables.

Dynamic brakes with a mechanical spring and a permanent magnet motor brake together.

High efficiency, low power consumption and sealed permanent magnet motor.

All-metal 3-speed planetary gear for greater pulling power.

Sliding clutch with pin and gear for quick extension of the rope.

Weatherproof contactor provides better water resistance and lower current.

Full IP67 waterproof design.

Towing capacity - 3000 lbs (1361 kg)

Motor - 800 w / 1.0 HP with permanent magnet 12V

Gearbox: 3-speed planetary 138.5: 1

Clutch (freewheel): Sliding pin and ring gear.

Brake: Dynamic brake with mechanical spring and permanent magnet motor together.

Winch construction: cast aluminum housing and drum Drum size: 55 x 75 mm (2.2' x 3')

Controls: Rocker switch on handlebar

Rope diameter - Ø 4.8 mm

Rope length - 15.2 m

Weight of the winch itself - 8.2 kg Pulling force depending on the rope layer:

Rope Layer - Rope Pull

1 - 1361

2 - 1173

3 - 1030

4 - 918

Application:

quads, ATV, UTV

Code id: 31125
