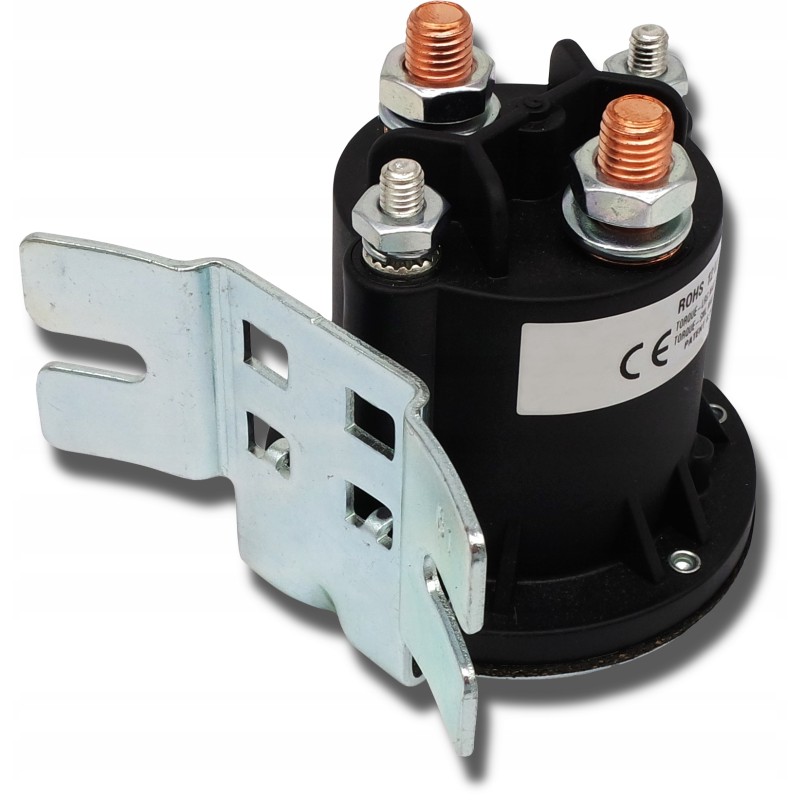

Coil of hydraulic pump unit tipper 12v 200a
  • Coil of hydraulic pump unit tipper 12v 200a
  • Coil of hydraulic pump unit tipper 12v 200a
  • Coil of hydraulic pump unit tipper 12v 200a
  • Coil of hydraulic pump unit tipper 12v 200a
  • Coil of hydraulic pump unit tipper 12v 200a
  • Coil of hydraulic pump unit tipper 12v 200a
  • Coil of hydraulic pump unit tipper 12v 200a

Coil of hydraulic pump unit tipper 12v 200a

15011773881399
SM-G
£65.34
Quantity
5 Items

Description
COIL - electromagnet of the hydraulic tipping pump 12V 200A KOD SKRAW MET: [0291] Manufacturer: SM-G (SKRAW MET GROUP) Application: The coil is used in delivery vehicles and is used to switch on the electric pump. The coil is perfect for electrically powered machines and devices .

Can be used in agriculture, horticulture, forestry and construction.

Technical specifications: Voltage: 12V

Current: 200A

Resistance: 5.4Ω

Connection material: Copper

Permissible temperatures: From -40°C to +82°C

Connection method: Vertical or horizontal

Maximum operating time: 6 minutes

Contactor type: SPST NO

Coil size (mm): Installation instructions: Select the coil mounting location.

Using the coil as a pattern, mark where to drill the mounting holes.

Using a 1/4' drill bit, drill holes in the locations marked in the previous step.

Install the coil using screws and 1/4' washers.

Connect the wires according to the connection diagram.

Connection diagram: 1- Ground

2- Ground

3- Voltage

B1- Power supply

B2- Switch

B3- Current receiver

B4- Fuse

Product Details
SM-G
15011773881399
PP-SP-SR-12V-200AZA
5 Items
New

Data sheet

Manufacturer
SM-G
Part Number
PP-SP-SR-12V-200AZA
Machine Type
Crane, Crane, Lift, Generator, Excavator, Backhoe Loader, Crusher, Loader, Grader, Asphalt Paver, Dozer, Roller, Dumper, Compactor, Other
Machine Brand
Atlas, Bobcat, Bomag, Case, Caterpillar, Doosan, Fadroma, Hitachi, Hyundai, JCB, John Deere, Komatsu, Kubota, Liebherr, New Holland, O&K, Terex, Volvo, Wacker, Yanmar, Zeppelin, Other
Parts manufacturer
SM-G
