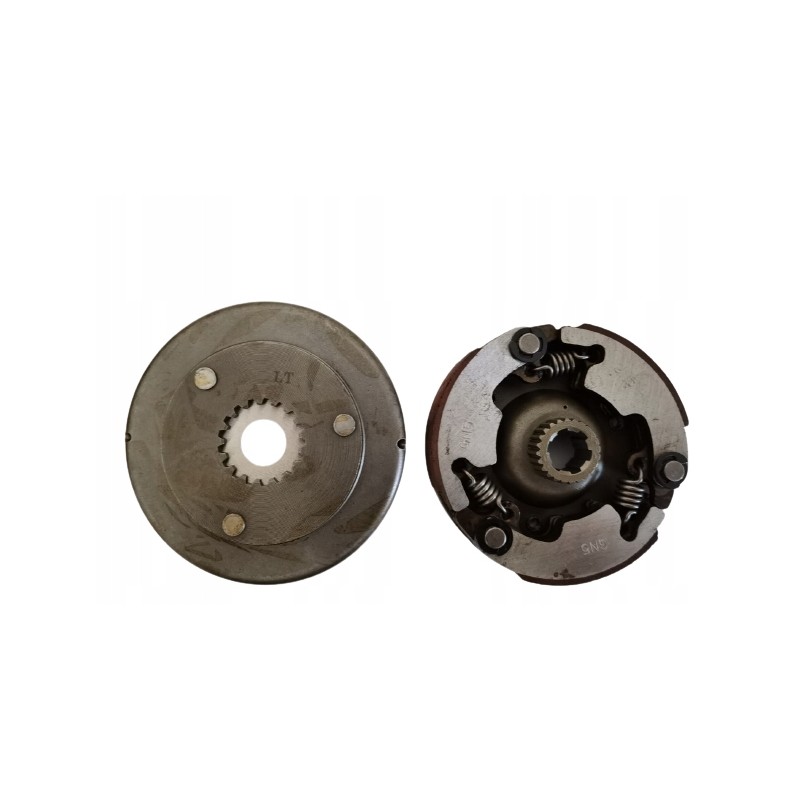

Drive clutch set, semi-automatic

DRIVE CLUTCH SET AUTOMATIC / SEMIAUTOMATIC 152FMH 110 -125 4T AC ATV Good quality clutch designed for Chinese mopeds, scooters and 4T quads, popular in our country.

Specification:

Total height: 34mm

Setting: 17x15

Clutch jaw diameter: 102mm

Inner diameter bell: 104mm

Number of bell cutters: 17

Number of drive cutters: 24

Outer diameter of the bell: 110 mm

The clutch is a basic element of scooters, mopeds and quads. There are two basic types of clutches: centrifugal clutch, used primarily in scooters and other belt-driven vehicles. The principle of operation of the centrifugal clutch comes down to narrowing and expanding under the influence of centrifugal force, which, together with other components such as the central spring, variator and drive belt, set the vehicle in motion

drive clutch

thanks to it, we disconnect and connect the gearbox with the engine, which allows us to change gears

Both the centrifugal clutch and the drive clutch are normal wear parts. In a centrifugal clutch, the jaws often wear out, the lining of which simply wears out, as well as the bell. The friction discs in the drive clutch may wear out. When replacing the clutch or its components, pay attention primarily to the dimensions of the components.
