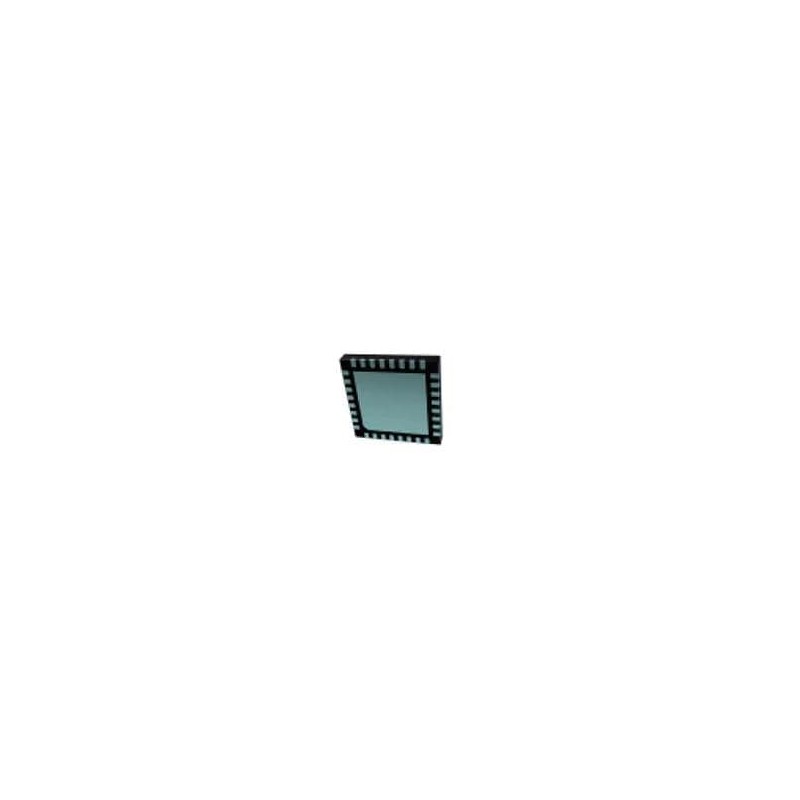

1 pcs : PI6C4921504TQ1ZHWEX - Clock Buffer Clock Buffer W-QFN5050-32 T&R 2.5K

PI6C492150xTQ Automotive LVDS Buffer Outputs Diodes Incorporated PI6C492150xTQ Automotive LVDS Buffer Outputs feature low delay from input to output and separate input-output supply voltage for level shifting. These devices are ideal for systems that distribute low-jitter clock signals to multiple destinations. The PI6C492150xTQ LVDS buffer outputs are AEC-Q100 qualified, lead-free, and fully RoHS compliant and support automotive grade 1. These LVDS buffer outputs feature 2/4 LVDS outputs with 2 banks and LVCMOS reference output up to 200MHz. The PI6C492150xTQ LVDS buffer outputs operate at -40°C to 125°C ambient temperature range and 150°C junction temperature (max). These LVDS buffer outputs are ideally used in networking systems, including switches, routers, and automotive infotainment.
