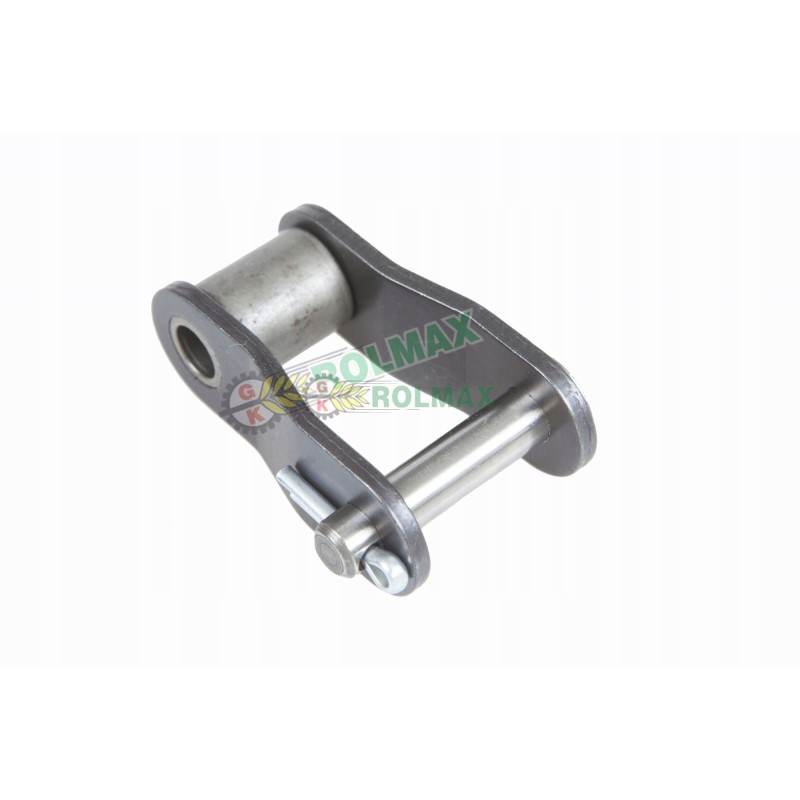

Reinforced chain link 38 4vb

Reinforced chain half-link 38.4VB

Thickness of the inner chain plates (actual according to measurement): 3.05

Thickness of external tiles chain (actual according to measurement): 3.05

Country of production of the goods (parts): USA

ISO standard: DS=40.4, L=58, H=20, GP=3

Pitch (mm) (p1) (in PN – col.3): 38,400

Manufacturer of goods (parts): Renold

Chain type: transport. - inclined conveyor - universal Minimum internal width of the link (b1) (in PN – col. 5): 19.05

Outside Dia. maximum rolls (d1) (in PN – col. 4): 15.88

Maximum pin diameter (d2) (in PN – col. 6): 8.28

Roller type: Squeeze roll

Type/Profile = basic designation: 38,4-VB
