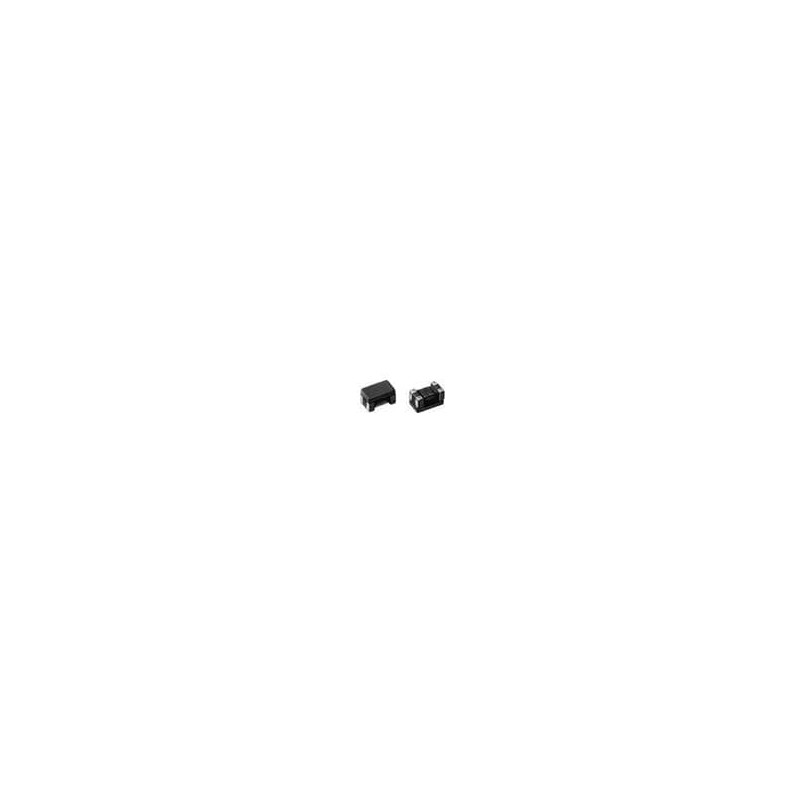

1 pcs : ACM2012H-900-2P-T03 - Common Mode Chokes / Filters 2mm x 1.2mm x 1.2mm, -40 to +105 degC, 90ohm, 300mA
    • 1 pcs : ACM2012H-900-2P-T03 - Common Mode Chokes / Filters 2mm x 1.2mm x 1.2mm, -40 to +105 degC, 90ohm, 300mA

    1 pcs : ACM2012H-900-2P-T03 - Common Mode Chokes / Filters 2mm x 1.2mm x 1.2mm, -40 to +105 degC, 90ohm, 300mA

    Allparts-UK/M/810-ACM2012H9002PT03
    TDK
    £9.73
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    ACM2012H Series Common Mode Filters TDK ACM2012H Common Mode Filters are designed for ultra high-speed differential signal lines. These common mode filters offer 6GHz of differential mode cutoff frequency that does not negatively influence high-speed differential signals. ACM2012H filters characteristic impedance is matched for 100Ω and can suppress unnecessary reflection components. TDK ACM2012H Common Mode Filters are ideal for use in applications such as HDMI, DVI, display ports, and USB3.0.
    Product Details
    TDK
    Allparts-UK/M/810-ACM2012H9002PT03
    ACM2012H-900-2P-T03
    10 Items

    Data sheet

    Manufacturer
    TDK
    Impedance
    90 Ohms
    Width
    1.2 mm
    Height
    1.2 mm
    Length
    2 mm
    Series
    ACM
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB Mount
    Type
    High Speed Differential Signal Line Filter
    Product Type
    Common Mode Chokes
    Termination Style
    SMD/SMT
    Product Category
    Common Mode Chokes / Filters
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    TDK
    Product
    Common Mode Filters
    Factory Pack Quantity Factory Pack Quantity
    2000
    Subcategory
    Inductors, Chokes & Coils
    Unit Weight
    10 mg
    Part # Aliases
    ACM2012H-900-2P-T03 -
