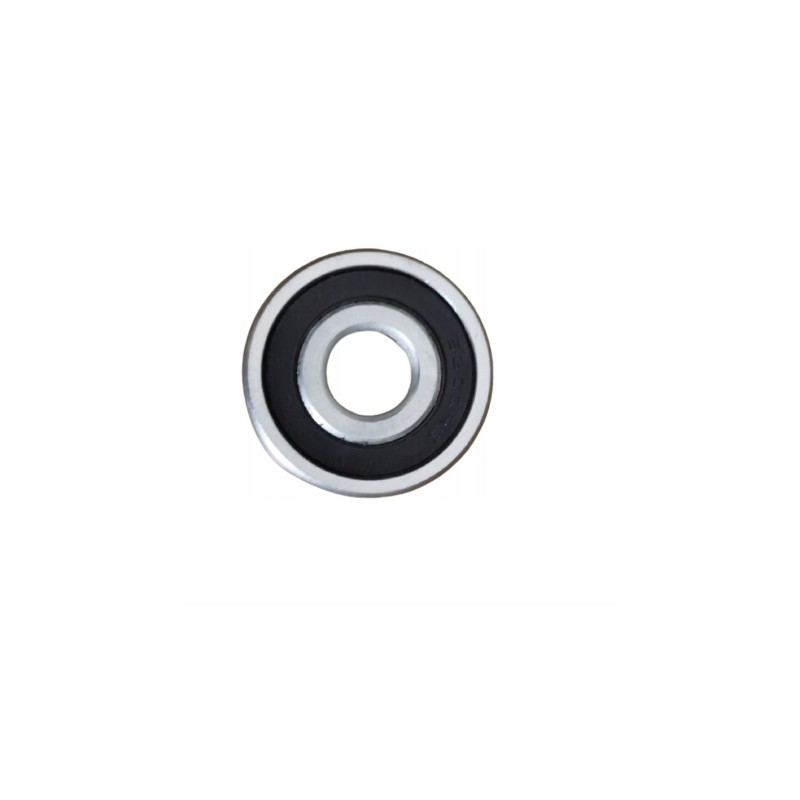

Bearing 6200 rs 2rs 10x30x9mm

New ball bearing

number 6200 RS / 2RS 10X30X9MM, dimensions:

Inner diameter ID: 10 mm

Outer diameter OD: 30 mm

Width H: 9 mm

Revolutions 18000 grease

Revolutions 24000 oil

Ball bearings

Ball bearings absorb radial and axial forces and can also be used at high rotational speeds. In addition, they show little friction, can be made with very high accuracy, and can be used as silent-running solutions. Due to their wide use (including in small and medium-sized electric motors) and favorable price, a ball bearing is the most commonly used rolling bearing.

in the open version or sealed with protective plates type ZZ (non-contact seal) or rubber seals type 2RS (contact seal). The seal can be one-sided or double-sided. Bearings sealed on both sides are usually filled with lithium-based grease, which has good anti-corrosion properties and can be used in the temperature range from -30°C to +110°C. The bearings are lubricated for their entire service life and do not require supervision.

The amount of grease is adjusted each time to the size of the bearing and fills in most cases from 25 to 35% of the free space in the bearing.

Bearings with protective shields are intended primarily for bearing arrangements with a rotating inner ring. As the outer ring rotates, there is a risk of grease leaking from the bearing with larger rotating rings.

Bearings with low-friction rubber seals meet the requirements for good sealing with a minimum of friction. The seal lips create a very narrow gap between the cylindrical surface of the inner ring flange so that the seal is practically contactless. Due to these properties, these seals, with better sealing efficiency, can operate at the same rotational speeds as bearings with protective shields.
