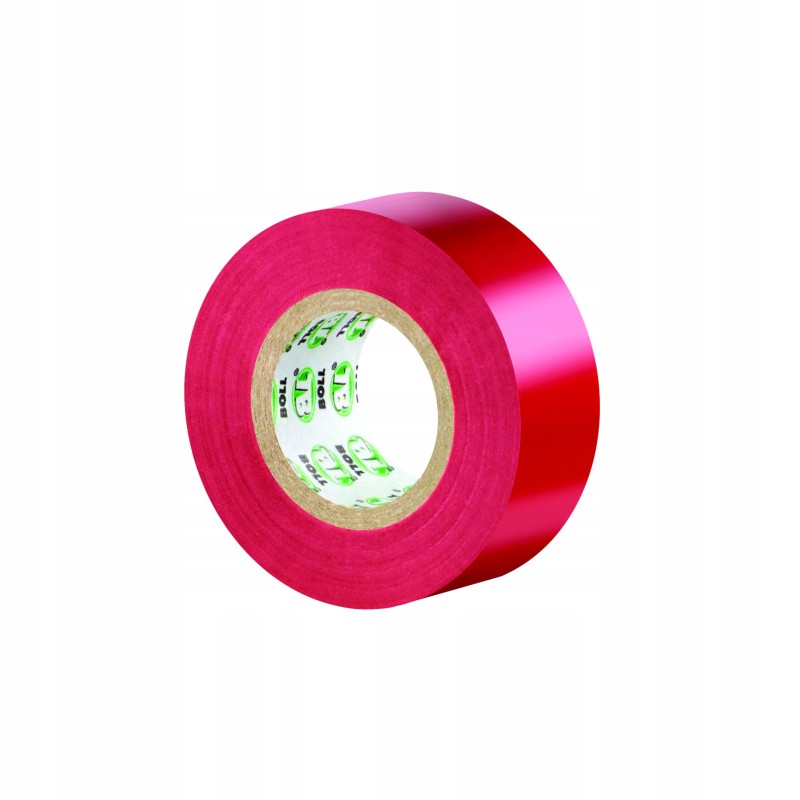

Boll red insulating tape 19x10

BOLL INSULATING TAPE Tape for making electrical insulation at high voltages, making electrical harnesses and for general use. It has excellent adhesion as well as sealing properties that limit the access of water and increase chemical resistance and electrical strength. It is resistant to oils, acidic and alkaline environments. It has non-sticky side surfaces.

FLAME RETARDANT

TAPE MANUFACTURED IN ACCORDANCE WITH CERTIFICATE STANDARDS: ISO 9001 and ISO 14001

HAS CERTIFICATES IN ACCORDANCE WITH EN 60454 IN THE FIELD OF ELECTRICAL INSULATION CLASSIFICATION: IEC 60454-3-1-7/F-PVCp/90

Specification: Dimensions: 19mm x 10m

Color: red

Manufacturer number: 0040122

EAN: 5907588404594

Physical properties: Carrier: plastic PVC foil

Total thickness: 0.13 mm

Adhesive base: synthetic rubber

Break strength: 210 N/10 mm2

Elongation at break: 215%

Adhesion to steel (2B): 2.80 N/10 mm

Adhesion to carrier: 2.60 N/10 mm

Electrical strength: 65,000

Thermal resistance: from -10 to +90°C

Flammability: self-extinguishing

Corrosion coefficient: 1014 Ohm/25 mm
