Heat shrink tube elast v20 hft 4 5 2 3mm

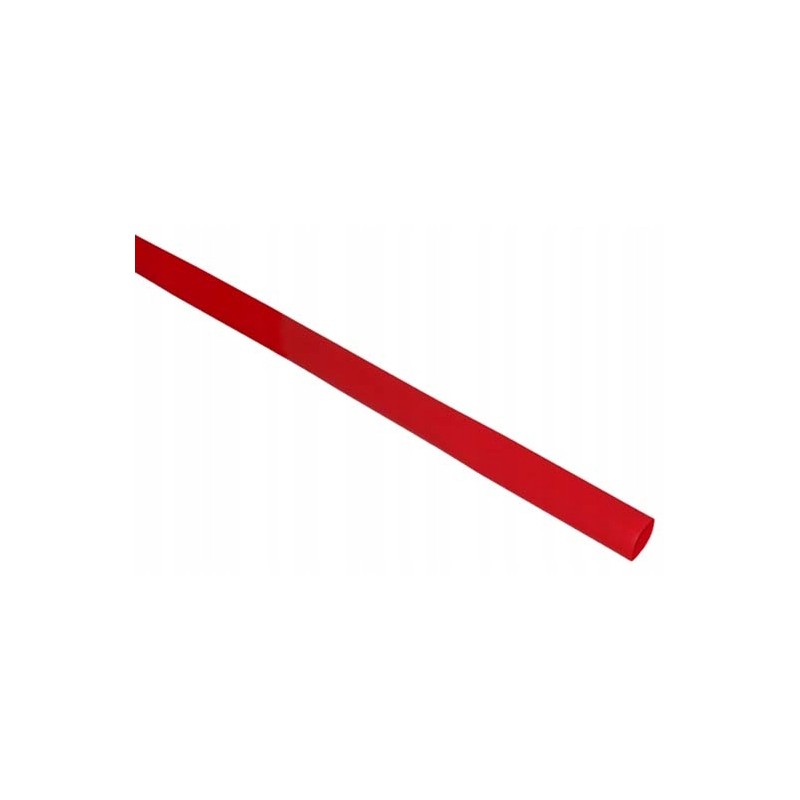

Halogen-free heat-shrinkable tube V20-HFT 4.5/2.3, flexible red, 1 piece

Symbol: V20-0462-01

Dimension

Diameter before shrinking 4.5 mm

Diameter after maximum shrinking 2.3 mm

Length 1 pc 1 meter

Tensile force: over 1.4 MPa

Flammability: VW-1

Elongation at break over 200%

Shrinkage temperature: 105oC

Radial shrinkage: greater than or equal to 50%

Change in length smaller than +/- 5%

Concentricity: greater than 70%

Certified: UL, CUL, F-Sony Green Partner

After applying the sheath to the cable, warm it briefly. The T-shirt shrinks, fitting tightly and precisely to the protected element. All you need to shrink the T-shirt is a low-power heat gun.

They insulate and seal perfectly

They create a protective, anti-corrosion, insulating and decorative layer

They are highly resistant to changing weather conditions

They protect against moisture

They take the shape of the object on which they are shrunk and increase its mechanical protection

They have high shrinking power and unlimited storage time

They are resistant to fungi, molds, and aggressive factors, e.g. salt solutions used on roads in winter. Black pipes are resistant to UV radiation.

Applications: Insulation of electrical connections

Connecting and welding wire harnesses

Insulating wire ends on connectors and terminal blocks

Repairing and restoring damaged cable insulation
