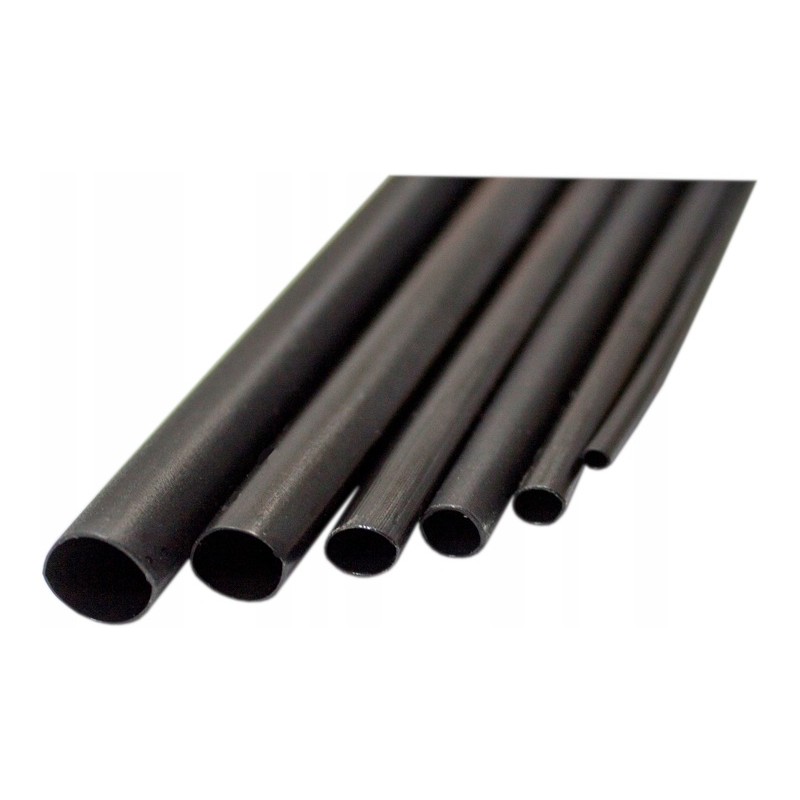

Heat shrink tubing 6 4 3 2 black 1m

HEAT SHRINK TUBE 6.4/3.2 BLACK 1mRADPOLD TECHNICAL DATA:

Temperature range - -55 to +125°C.

Shrinkage ratio - 4:1

Minimum shrink temperature - +115°C.

Tubes - non-self-extinguishing, halogen-free.

Resistant - UV.

Tubes - RCH1

Operating temperature - -55 to +125°C

Length change after shrinking - +5 ÷ -10%

Tensile strength - min. 15MPa

Elongation at break - min. 350%

Heat aging (168 h, temperature) - 158°C

Tensile strength after heat aging - min. 12MPa

Elongation at break after thermal aging - min 250%

Heat shock (4 h, temperature) -175°C, no dripping, cracking or melting of the wall

Copper corrosion - does not corrode

Flexibility at low temperature - time 4 hours does not crack at -55°C

Water absorption - max 0.1%

Dielectric strength - min. 16kV/mm

Volume resistivity - min. 1012Ωm

Heat shrink tubes are made of polyolefins (including polyethylene) radiation cross-linked. They perfectly insulate and seal. They create a protective, anti-corrosion and decorative layer.
