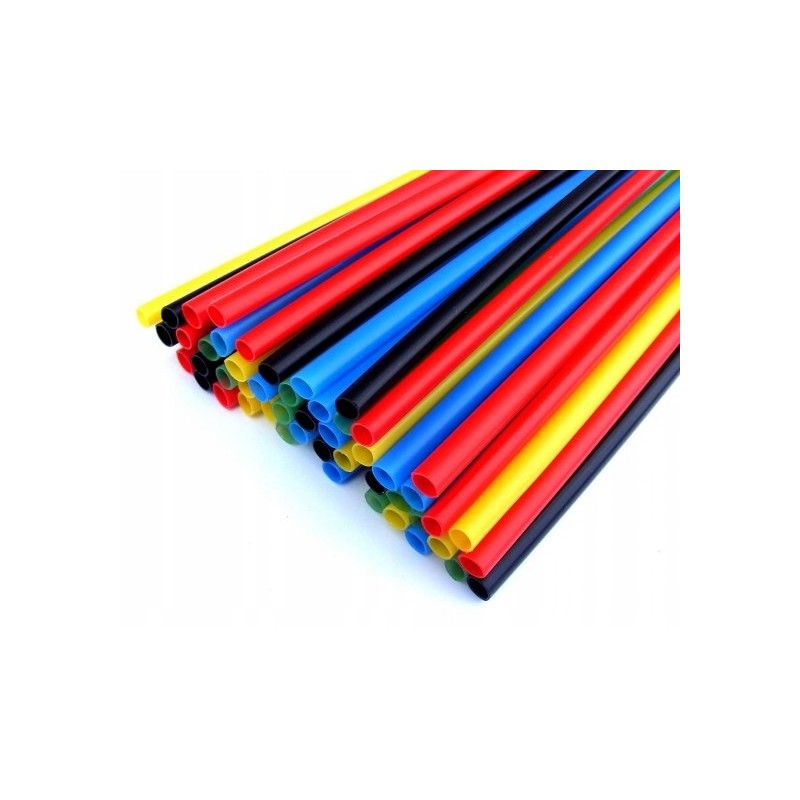

Heat shrink tubing rts 2 4 1 2 red

 Heat shrink tube RTS 2.4/1.2 red Code: RTS 2.4/1.2 Jun

EAN: 2010000000649

Producer: Tritite

RTS - Self-extinguishing heat shrink tubing.

Flexible polyolefin tube, highly flame resistant, environmentally friendly, operating temperature -55°C to +125°C, shrinkage ratio: 2:1.

This tube is suitable for insulation, protection, identification and bundling purposes. It is widely used in electronics, telecommunications and the automotive industry.

The specially developed composition meets the requirements of UL224 and CSA C22.2 standards.

Free from toxic heavy metals and substances such as PUB, PBBO, PBBE.

Low shrinkage temperature and excellent mechanical properties.

Minimum shrink temperature: 80°C.

Minimum temperature for full shrinkage: 100°C.

Material with lead content below 10ppm and cadmium below 5ppm.

Basic colors: black, red, blue, yellow, green, brown, yellow-green Technical data:

Operating temperature UL 224, -55°C to 125°C

Tensile strength GB/T 1040, 14 Mpa

Elongation at break GB/T 1040, 450%

Longitudinal shrinkage UL 224, ±5%

Eccentricity ASTM D 2671, <,20%

Heat aging/Tensile strength/Elongation at break 158°C, 168h, 14 MPa, 450%

Cold bending UL 224 -30°C/1 hour, no cracks

Flammability test UL 224/VW-1, non-flammable

Dielectric strength GB 1408, 17kV/mm

Specific volume resistivity GB 1410, >,1015 Ω.cm

Behavior in contact with copper UL 224, 158°C, 168h, non-corrosive

Size: 3/32 inch

Inner diameter as delivered: 2.4 mm

Wall thickness as delivered: 0.25 mm

Inner diameter after shrinking: 1.2 mm

Wall thickness after shrinking: 0.44 mm

Length: 1 meter
