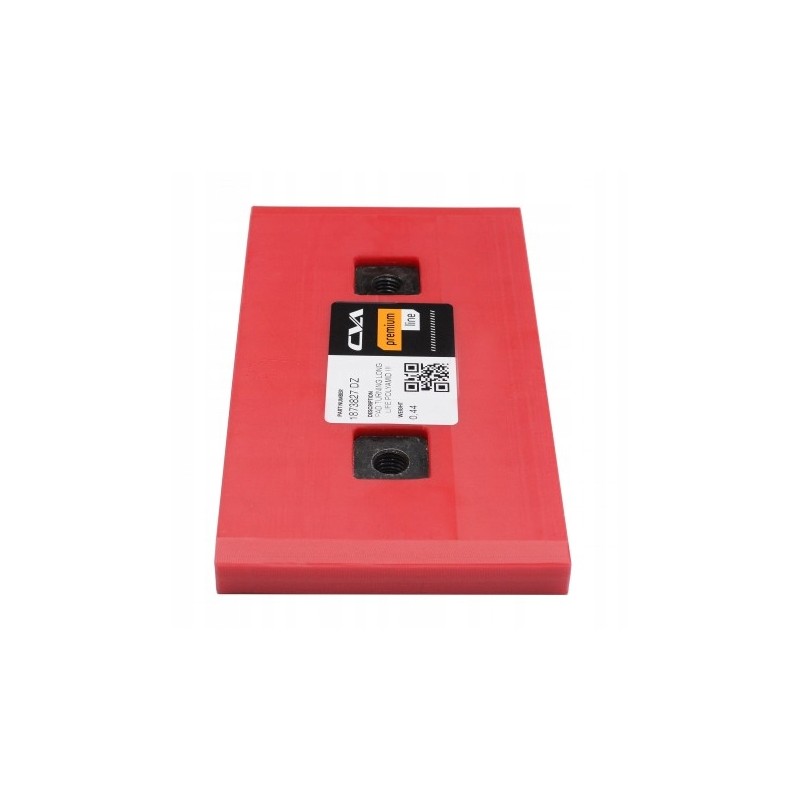

Rear arm extension slide, thickness 15 2mm cat 438c 426c 442d 428 1873827 1720085

ARM SLIDING CAT Used in machines:

438C, 426C, 442D, 428C, 416D, 436C, 428D, 446D, 416C, 430D, 424D, 420D, 438D, 432D.

Parameters:

height: 15.2 mm

length : 110 mm

width: 200 mm

Bolt spacing 100 mm

Screw 1/2'

Properties:

abrasion-resistant,

low coefficient of friction,

good sliding properties,

dimensional stability at large temperature changes,

vibration damping

very high impact strength even at low temperatures temperatures

good chemical resistance, e.g. to oils, fats, gasoline, etc.

The glides are made of Polyamide.

It is characterized by good mechanical properties, abrasion resistance and a low coefficient of friction.

The great advantage of polyamides is their shape stability at elevated temperatures.

Moreover, they are resistant to gasoline and solvents.

They demonstrate very high stiffness and high dimensional stability.

The slides are made of one TURNED element The slides are not made by injection method!!!
