Cascade meter inspection forks carriage forks class 3

THE WORLD'S LARGEST MANUFACTURER OF FORKLIFT ACCESSORIES AND FORKSFull specification of the auction item: Manufacturer - CASCADE

Condition - Brand new

Product - Tool - Fork and carriage inspection gauge

Model - 3J - 209507

Intended use - fork assembly class III and carriage

How does the fork manufacturer Cascade recommend that you inspect the forks and carriage?================================= =====================

It's very simple.

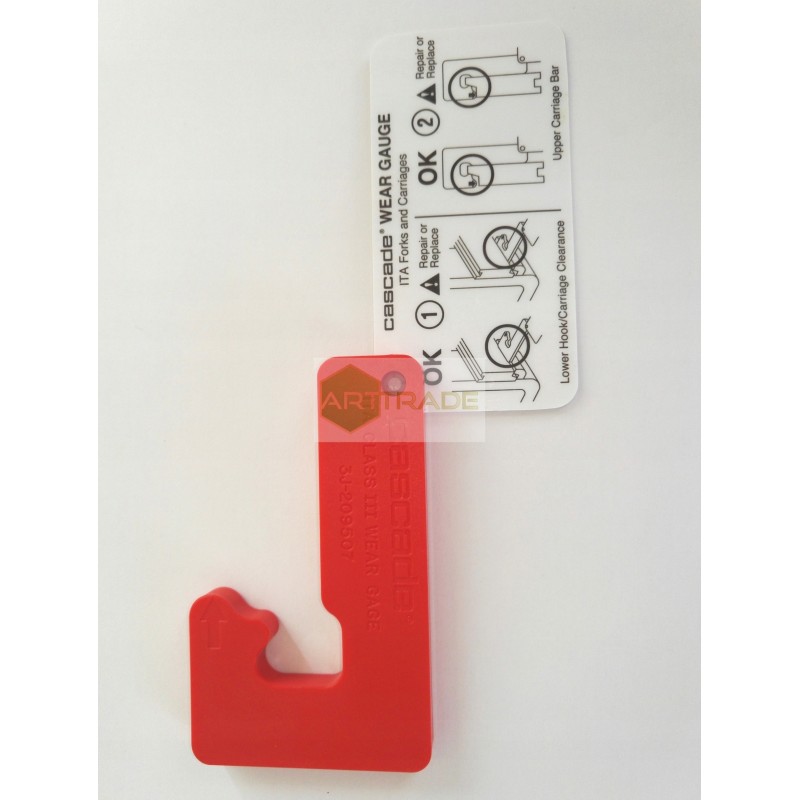

There is a pictorial instruction manual for each measuring device.

Just follow the instructions below.

On the first page This manual shows how to check:

1. Lower Hook / Carriage Clearance2. Upper Carriage BarThe second page of the manual shows how to check:

3. Fork Upper Hook1. LOWER HOOK / Carriage Clearance

==================================================== =================

Check the lower fork hooks and the carriage beam. If the wear indicator can be inserted between the carriage beam and the lower fork link, repair* or replacement is required.

2. UPPER CARRIAGE BAR

========================================================= =============

Check the upper carriage beam. If the arrow on the indicator touches the carriage beam, it needs to be repaired * or replaced.

3. Fork Upper Hook

========================================================= =============

Check the upper fork hooks. If the arrow on the indicator touches the hook, it must be repaired * or replaced.

* ATTENTION REPAIRS CAN ONLY BE PERFORMED EXCEPT AUTHORIZED BY THE OFFICE OF TECHNICAL INSPECTION PLANT
