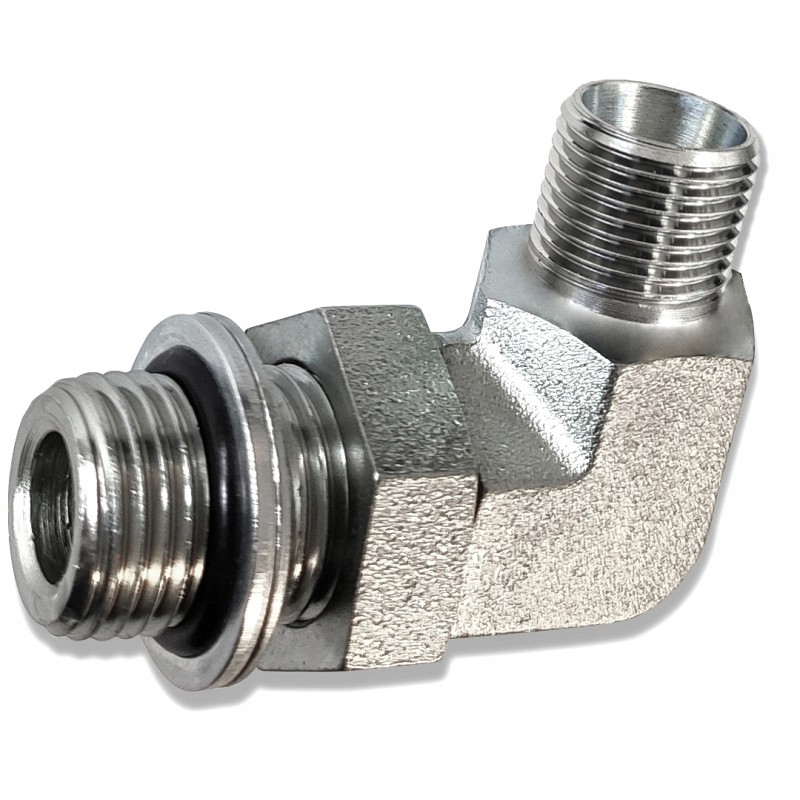

Bulkhead connector m22 m18 12l 90 degree elbow

Bulkhead hydraulic connector - elbow M22x1.5 - M18x1.5 12LKOD SKRAW MET: [1716] Manufacturer: SM-G (SKRAW MET GROUP) The bulkhead connector in a standardized light version is mainly used for mounting/screwing sheet metal or other element on bulkheads, walls , fastening lines, valves, etc.

You can also use this connector as an extension.

On one side there are two threads with a locknut and a washer with an O-ring, and on the other side there is a typical thread with a self-sealing cone when tightened.

Due to the lack of a rubber seal ED and space for a seal, the connector is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, we use connectors that can be purchased at our other auctions.

Application: Perfect for hydraulically powered machines and devices.

Can be used in agriculture, horticulture, forestry, construction and industry in general.

Technical specifications: Clamping cone angle : 24° (typical for the Polish standard)

Nominal diameter of the passage: 10 mm

Wrench nut: 27 mm

Thread with washers and nut: external metric M22x1.5

Thread without washers: external metric M18x1.5

Nominal pressure: 180 bar

Maximum pressure: 230 bar

Fluid type: hydraulic oil

Connector version: light

Material: galvanized steel
