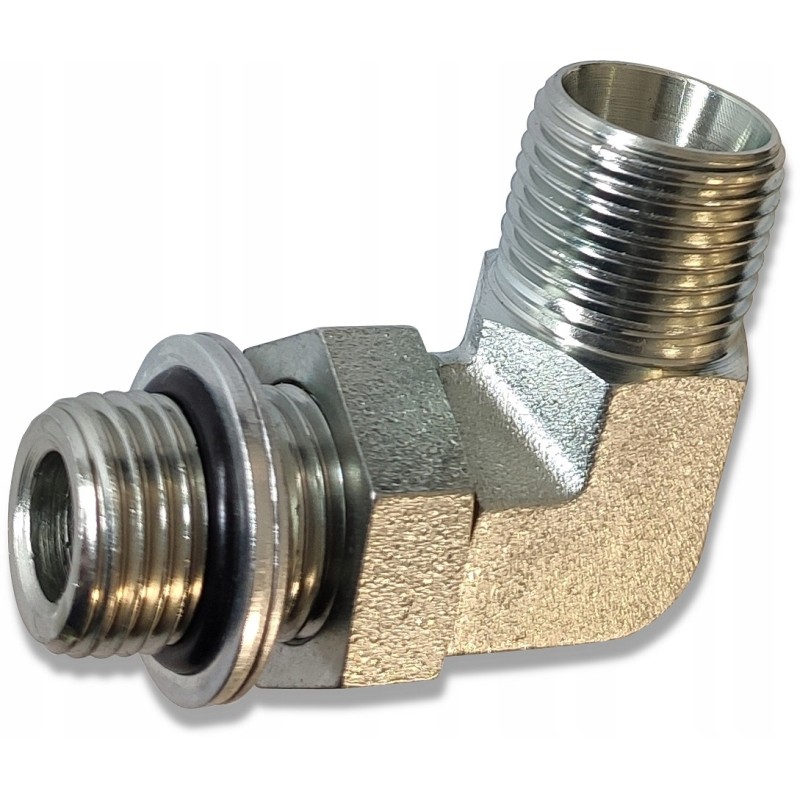

Bulkhead connector m16 m18 12l 90 degree elbow

Bulkhead hydraulic connector - elbow M16x1.5 - M18x1.5 12L SKRAW MET CODE: [1718] Manufacturer: SM-G (SKRAW MET GROUP) The bulkhead connector in a standardized light version is mainly used for mounting/screwing sheet metal or other element on bulkheads, walls, fasteners for cables, valves, etc.

You can also use this connector as an extension.

On one side there are two threads with a locknut and a washer with an O-ring, and on the other side there is a typical thread with a self-sealing cone when tightened.

Due to the lack of a rubber ED seals and places for the seal, the connector is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections are used for this purpose and can be purchased at our other auctions.

Application:

Perfect for hydraulically powered machines and devices.

Can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

Technical specifications: Cone angle clamping angle: 24° (typical for the Polish standard)

Nominal diameter of the passage: 10 mm Key nut: 22 mm

Thread with washers and nut: external metric M16x1.5

Thread without washers: external metric M18x1.5

Nominal pressure: 180 bar Maximum pressure: 230 bar

Fluid type: hydraulic oil

Connector version: light

Material: galvanized steel
