    50 pcs - BD9701FP-E2 ROHM, BD9701FP-E2 Switching Regulator 1.5A Adjustable 5-Pin, TO-252
    • 50 pcs - BD9701FP-E2 ROHM, BD9701FP-E2 Switching Regulator 1.5A Adjustable 5-Pin, TO-252

    50 pcs - BD9701FP-E2 ROHM, BD9701FP-E2 Switching Regulator 1.5A Adjustable 5-Pin, TO-252

    50(Allparts)1677347
    ROHM

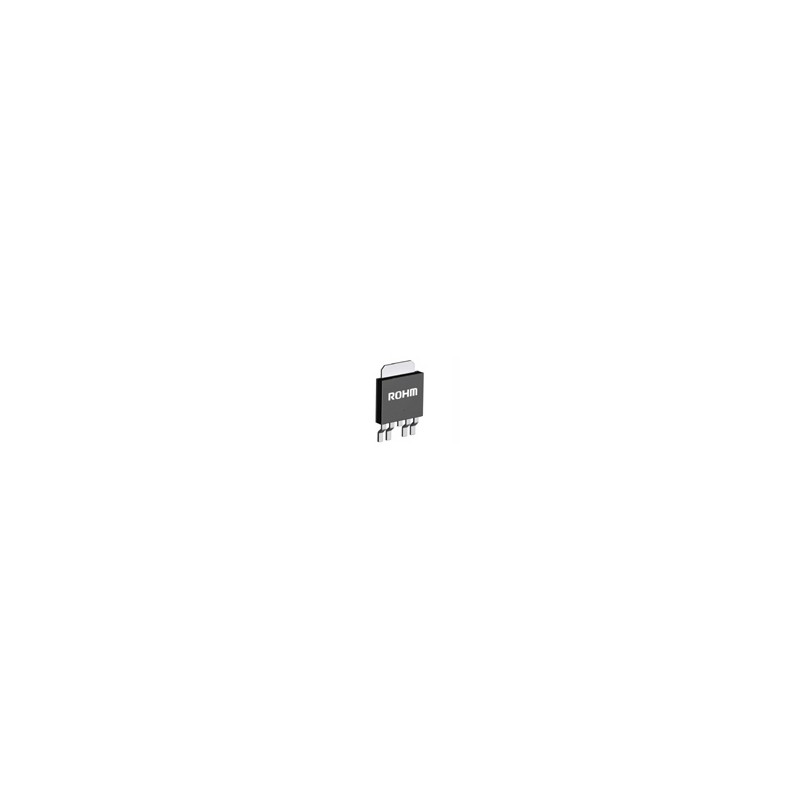

    50 pcs - BD9701FP-E2 ROHM, BD9701FP-E2 Switching Regulator 1.5A Adjustable 5-Pin, TO-252
    £63.04
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    The BD9701 / BD9703 / BD9702 are single-channel step-down switching regulator capable of PWM operation. The Pch MOSFET is built in for high efficiency in small load area. Lower electricity consumption of operating current 4mA (Typ.) and stand-by current 0μA (Typ.) is realized by adopting Bi-CMOS process.Maximum switching current : 1.5A (BD9701 / BD9703), 3A (BD9702)Built-in Pch FET ensures high efficiencyOutput voltage adjustable via external resistorsHigh switching frequency : 100kHz (BD9701), 300kHz (BD9703), 110kHz (BD9702)Over current and thermal shutdown protection circuits built inON / OFF control via STBY pinSmall surface mount TO252-5 package
    Product Details
    ROHM
    50(Allparts)1677347
    BD9701FP-E2
    10 Items

    Data sheet

    Manufacturer
    ROHM
    Dimensions
    6.5 x 5.5 x 1.8mm
    Width
    5.5mm
    Height
    1.8mm
    Length
    6.5mm
    A-Supplier
    Allparts-UK/15/R-15
    Maximum Operating Temperature
    +85 °C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -40 °C
    Output Type
    Adjustable
    Maximum Input Voltage
    35 V
    Maximum Switching Frequency
    100 kHz
    Maximum Output Current
    1.5A
    Pin Count
    5
    Package Type
    TO-252
    Minimum Input Voltage
    8 V
    Load Regulation
    40 mV
    Maximum Output Voltage
    32 V
    Minimum Output Voltage
    1 V
    Line Regulation
    100 mV
    Regulator Function
    Buck Converter
